Cole-Parmer Brand Freezers

Related Documents

Not sure what part you need? Check the links below for exploded parts lists and other helpful information.

User Manual
User Manual

MF49SS-SARE-CP

Home > Lab Equipment Parts > Freezers > Cole-Parmer > MF49SS-SARE-CP

Parts for MF49SS-SARE-CP

Place an Order

If this order is for an out of service unit, please call Service Support at 800-438-4851 to place your order.

ImageSKUDescriptionPackagingQtyPrice
View102259RELAY 12VDC FORM A SPST -A-ea$14.40
View102627SWTCH RKR DPST 125/250BLK-A-"Iea$8.10
View103264SHELF CLIP (FRONT) SPOea$6.40
View104114optional chart recorder with alarm & relayea$1,960.00
View104116RECRDR CHART 7DAY 40TO60C 52PKea$66.40
104117replacement pen tips (6 per pack)pk$236.00
View104711BATTERY BACK-UP 12VDC -A-ea$38.10
View104746KEY SWITCH CABLE ASSYea$301.00
105447GASKET, DOOR (RPO)ea$234.00
View105448EVAPORATOR FAN BLADEea$46.20
View105458EVAPORATOR FAN LIMIT SWITCHea$319.00
105459DEFROST LIMIT SWITCHea$330.00
105460MOTOR, DEFROST TIMER (RPO)ea$560.00

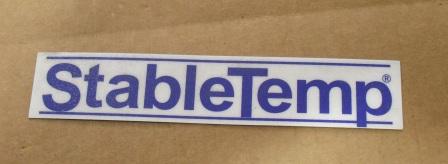

View105868LABEL Stabletemp CP -B-ea$25.00
105974DOOR ASSEMBLY (SOLID) R.H.ea$3,710.00
105975DOOR ASSEMBLY (SOLID) L.H.ea$3,340.00
View105977DOOR LOCK W/ KEYS (SOLID)ea$85.30
View105978HINGE AND CLOSURE (TOP/BOTTOM)ea$201.00
106012CONDENSER FAN BLADEea$55.90
106101FAN/LIGHT STRIKE PLATEea$19.10
106106CABINET FACE HEATER (3 REQ'D)ea$89.80
106226TOP COVER LID GASKETea$84.30
106232DEFROST HEATERea$408.00
View106589KEY, POWER SWITCH -B106588-ea$39.70
View106739LIGHT/EVAPORATOR ROCKER SWITCHea$98.40
View106834GLASS, CHART RECORDER RPOea$71.00
View107108LEVELING LEGea$27.00
View305371H01Caster, 2" Dia, with Brakeea$53.40
View316258H01WAGO CONNECTOR,222-412ea$5.38
View316259H01WAGO CONNECTOR,222-413ea$5.38

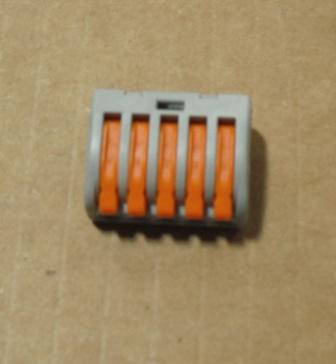

View316260H01WAGO CONNECTOR,222-415ea$5.38
316591H04HF2 Header, A, w/ Chart RECea$318.00
316734H01SS Relay 45A Opto 22 240D45-Tea$137.00

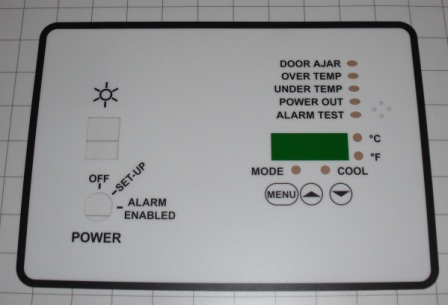

View316755H01Overlay - GENERIC REF / FRZ - MF, MH, MR - CP & SLea$72.00
316762H01CASTER WRENCHea$35.20
View49060H01Caster, 2" Dia, with out Brakeea$55.40
98413H01WIRE SHELF, OUTSIDEea$233.00
98447H01DISTRIBUTOR,D260- 2-3/16 - 3/4ea$79.00
98450H01EXP VALVE EFSE-1/2-ZP35 13PSIea$224.00
98452H01ACCUMULATOR HFea$17.00
98454H01COND COIL 19X10X4ea$566.00
98464H011HP 220-60 TEC AWA2450ZXDea$3,530.00
98472H01RELAY 820ARR3H23ea$82.80
98476H01START CAP 85PS330D16ea$72.00
98478H01RUN CAP 85PR370F21ea$54.00
98483H01LATCH/STRIKE ASSYea$8.60
98486H01RETAINER - DEFROST HEATERea$6.00
98487H01LOCK STRIKE E,P24/48/74ea$14.00
98488H01LOCK CORE REMOVAL KEY A/E/Pea$21.00
98502H01SPRING .25 X 1.27ea$9.10
98503H01SPRING HOOKea$9.10
98541H01BLOWER HSG ASSY - WELD HF2ea$125.00
98548H01BLOWER ASSY 115/60 HF2ea$334.00
98553H01DRAIN TUBE HOLDER (AD)ea$6.00
98554H01EVAP DRAIN PAN ASSY-WELDea$306.00
98557H01DRAIN PAN - CONDENSATE E/Pea$147.00
98568H01COND PAN ASSY - COMP HF2Sea$395.00
98578H01GRILLE ASSY - SS H2ea$244.00
98581H01TUBE - DISCHARGE HF2Sea$99.00
98584H01FAN SHROUDea$102.00
98607H01UNIT ASSY - COND 220-60 HF2S88ea$5,379.00
98616H01COND MOTOR 9 W 230-50/60 GEea$152.00
98617H01EVAP MOTOR 9 WATTS 115-60 GEea$185.00
98631H01WIRING HARNESS - LIGHT 48 Sea$55.00
98633H01WIRING HARNESS - LIGHT E/Pea$16.00
98645H01HARNESS - INTERIOR LAMP HR2Sea$29.00
98647H01HARNESS - COMPRESSOR HF2ea$47.58
98651H01LID ASSY - EVAP HSG SS HF2-88ea$489.00
98654H01COVER - TIMERea$6.00
98655H01BRACKET - FAN CONTROLea$16.00
98656H01AIR DUCT - BACK AAL HF1ea$79.00
98667H01WICKING HFea$22.00
98670H01Cap, Corner Breakersea$6.00
ViewCMX6CHEMICAL HEAT SINK COMPOUNDea$41.00
RF1804X104Plastic Horizontal Moldingea$32.10
RF1804X105Plastic Vertical Moldingea$36.00
RF1804X11Condenser Motor Bracketea$14.00
RF1804X118Filter Drierea$60.40
RF1804X13Evaporator Coilea$413.00
ViewRF1804X254pen arm for Cobex Recorders C952 & C953ea$80.60
RF1804X273EVAPORATOR DRAIN PAN ASSY FOR EF48-5BS-88ea$283.60
RF1804X315AC ADAPTR FOR RCRDR 104115 RPOea$85.30
RF1804X33Pilasterea$20.00

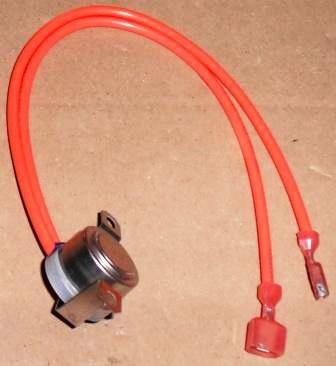

ViewRF1804X349CUTOUT, HI TEMP FOR EF48-5BS-88ea$33.10
RF1804X380DOOR HANDLE FOR 104126 RPOea$44.50
RF1804X43Evaporator Fan Bracketea$18.80
RF1804X46Vent Sealea$21.60
ViewRF1804X47Vent Plugea$5.20
ViewRF1804X48Vent Clipea$5.20
ViewRF1804X49Vent Tubeea$6.21
RF1804X55Case & Door assemblyea$863.00
RF1804X70Light Socketea$14.20





This site contains the most frequently requested Thermo Scientific Laboratory Equipment replacement parts, including those for a number of discontinued products. If you don't find the part you need, please call us at 1.866.984.3766.
If this order is for an out of service unit, please call Service Support at 1-800-438-4851 to place your order.
