Lynx 4000 - 200-240V 50/60Hz

Home > Lab Equipment Parts > Centrifuges > Thermo Scientific SORVALL > Lynx 4000 - 200-240V 50/60Hz

Parts for Lynx 4000 - 200-240V 50/60Hz

Place an Order

If this order is for an out of service unit, please call Service Support at 800-438-4851 to place your order.

ImageSKUDescriptionPackagingQtyPrice
View20022874ANTIVIBRATION MOUNT. Also used as lower mount on LYNX series super speed centrifugesea$32.50
View20038955ANTIVIBRATION MOUNTea$80.30
View20058741Decorationpart rightea$275.00
View20150304Main PCB boxea$5,540.00
View20150305Sensor capea$1,030.00
View20150326Relayboard with housingea$1,570.00
View20160748Brake resistorea$663.00
View20170358LINE FILTER 250 V 36Aea$451.00
View20170361Transformer 200/208/220/230/240V 30Aea$670.00
View20180763Overcurrentswitch 2 line 250V 30Aea$580.00
View20180767Connector, Sensor Headea$14.60
View20190357Main cable 3x4mm 230V 32Aea$161.00
View20210450Motor fanea$472.00
View20220677Socket 32A 3P 230Vea$337.00
View20240665Expansion Valveea$421.00
View20510292SCREW M6 X 10 . Fixes LYNX Motor to Centering Ring - Tighten to 12Nm ea$7.20
20510351Screw, M8 x 12. Fixes Centering Ring to Housing - Tighten to 22Nm on Lynxea$1.00
20510358SCREW HEX SELF LOCKING M5X8 8.. Fixes central AV Mount to Motor on LYNXea$0.20
20510368SCREW M5 X 8 . For Latches & Panels on LYNXea$1.90
View20907123Autolock system Lynxea$655.00
50131962RIGHT RIBBON CABLE(400MM). For Lynx right latchea$16.00
50131963LEFT RIBBON CABLE (850MM). For Lynx left latchea$13.00
50131966WIRING MAINBOARD-RELAY BOARDea$66.00
View50132026Compressor damping elementea$88.00
View50132090Wiring GUI main PCBea$60.30
View50132460Insulation foam exp. valveea$90.00
View50133124Gasketea$158.00
View50134234Condenserea$953.00
View50134235Fan condenser with mounting ringea$1,100.00
View50134242Gas springea$105.00
View50134243Vacuum membran sealingea$125.00
50134249REAR PANEL DAMPING ELEMENTea$96.00
View50134319Grid condenserea$188.00
View50134320GUI holderea$94.92
View50134321EMF panelea$43.00
View50134422Rear panelea$453.00
View50134424Castorea$122.00
View50134425Stand footea$146.00
View50134426Filter Dryerea$161.00
View50134427Accumulator 850 cmüea$373.00
View50134428Holder rotor coverea$91.38
View50134524Insulation of chassisea$8.00
View50134525Insulation evaporatorea$7.60
View50134526INSULATION SENSOR CAPea$3.59
View50134527Insulation anti vibration mountsea$80.40
50134531SCREW, M4 X 30, S/S. For LYNX Sensor Capea$5.00
View50135548Sticker Thermo Fisherea$80.40

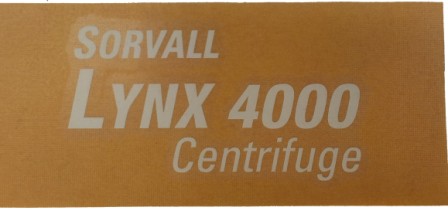

View50135549Overlay Lynx 4000ea$588.00
View50135684AIR DUCTea$259.00
View50135700PLATE, Adjustment Ringea$90.00
View50135775Motor air separationea$121.00
50135783FLAT SEAL (SENSOR CAP CABLE)ea$13.80
View50135796Rapid spring strapea$0.80
View50135797Rapid fittingea$4.10
View50135799Decorationpart frontea$408.00
View50135800Front cover completeea$529.00

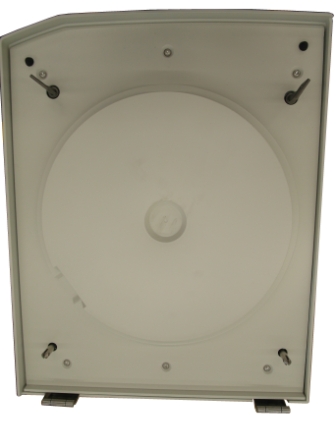

View50135808Cover assy complete Lynx 4000ea$2,590.00
View50136247Upper motor housing insulationea$8.00
View50136248Hold down assy with temperatureprobeea$362.00
50137716MOTOR BASE PLATE ABOVE FANea$25.75
50138326SCREW, M5X6 TORXea$1.25
View70900174Motor flex spindleea$6,910.00
View70900177LYNX SERVICE KITea$763.00
View70902710Latch system Lynxea$1,630.00
View75006500Seismic Bolt Down, LYNXea$913.00
View77375COMPRESSOR, AV195ET-037-B4ea$987.00
View92732POENTIAL RELAYea$147.00
View92733RUN CAPACITORea$133.00
View92734START CAPACITORea$94.20





This site contains the most frequently requested Thermo Scientific Laboratory Equipment replacement parts, including those for a number of discontinued products. If you don't find the part you need, please call us at 1.866.984.3766.
If this order is for an out of service unit, please call Service Support at 1-800-438-4851 to place your order.
