Lynx 6000 - 200-240V 50/60Hz

Home > Lab Equipment Parts > Centrifuges > Thermo Scientific SORVALL > Lynx 6000 - 200-240V 50/60Hz

Parts for Lynx 6000 - 200-240V 50/60Hz

Place an Order

If this order is for an out of service unit, please call Service Support at 800-438-4851 to place your order.

ImageSKUDescriptionPackagingQtyPrice

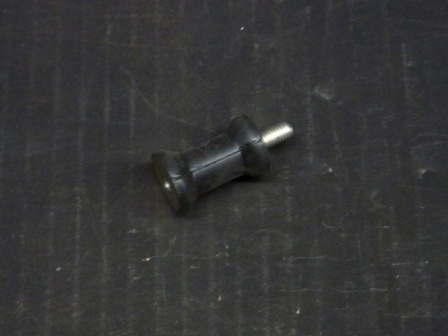

View20022874ANTIVIBRATION MOUNT. Also used as lower mount on LYNX series super speed centrifugesea$32.50
View20038955ANTIVIBRATION MOUNTea$80.30

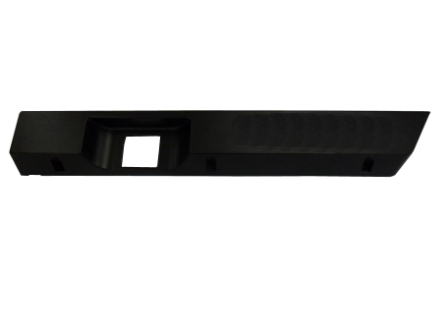

View20058741Decorationpart rightea$275.00
View20150304Main PCB boxea$5,540.00

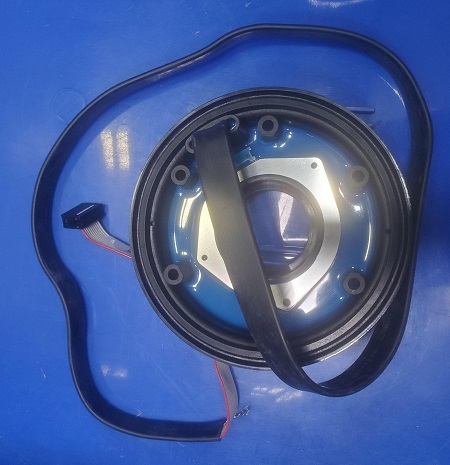

View20150305Sensor capea$1,030.00
20150320Vacuumsensorea$317.00

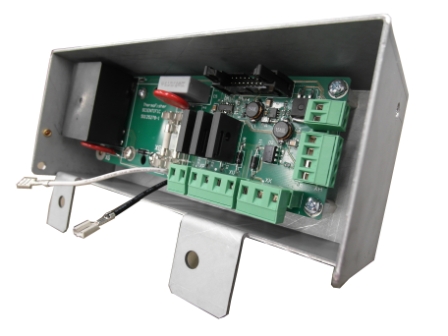

View20150326Relayboard with housingea$1,570.00
View20160748Brake resistorea$663.00

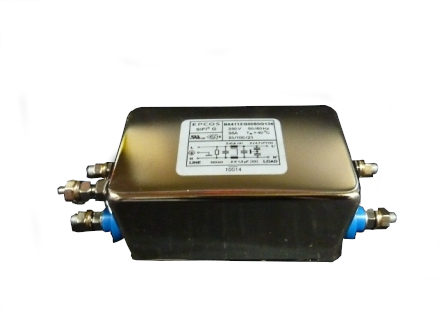

View20170358LINE FILTER 250 V 36Aea$451.00

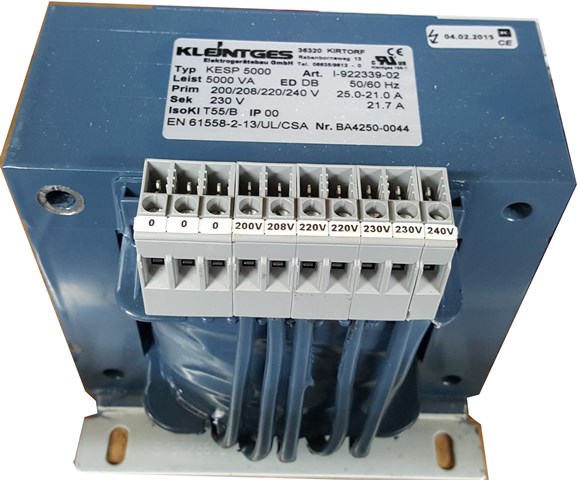

View20170361Transformer 200/208/220/230/240V 30Aea$670.00

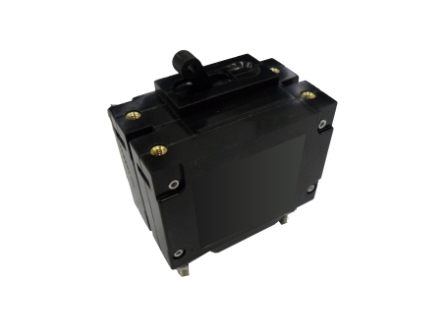

View20180763Overcurrentswitch 2 line 250V 30Aea$580.00

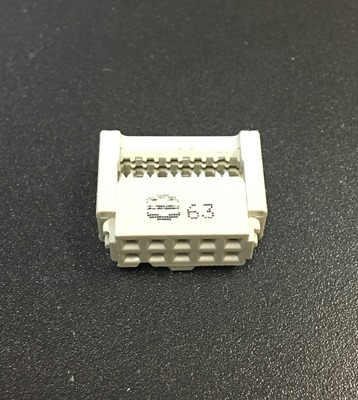

View20180767Connector, Sensor Headea$14.60

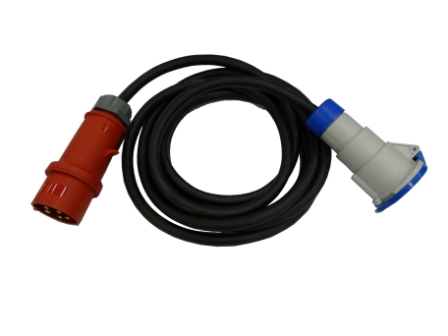

View20190357Main cable 3x4mm 230V 32Aea$161.00

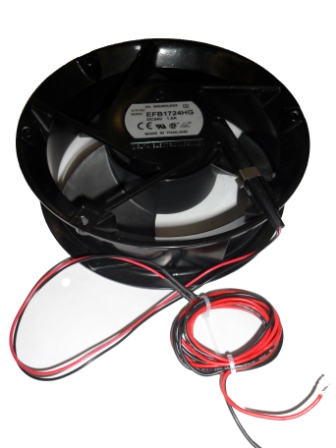

View20210450Motor fanea$472.00

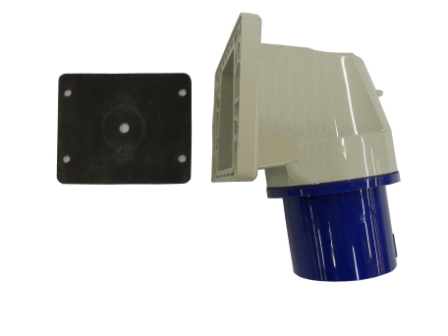

View20220677Socket 32A 3P 230Vea$337.00

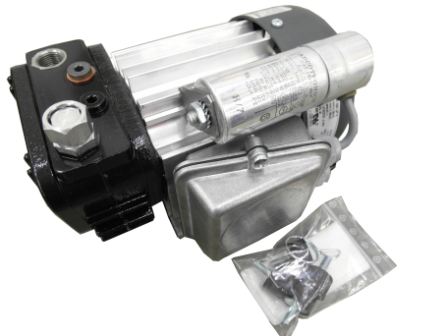

View20240662Vacuumpump VTE6 230V 50/60Hzea$3,620.00

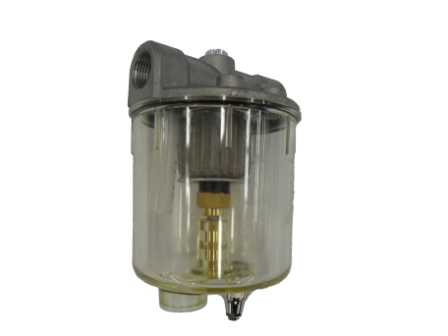

View20240663Vacuumfilter wetea$211.00

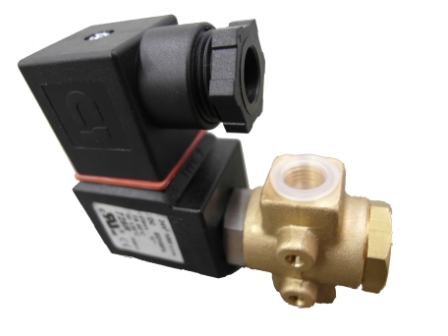

View20240664Bleeding valveea$724.00

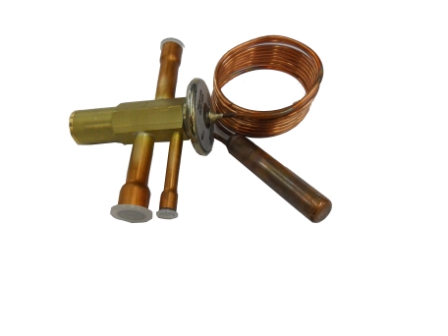

View20240665Expansion Valveea$421.00
View20510292SCREW M6 X 10 . Fixes LYNX Motor to Centering Ring - Tighten to 12Nm ea$7.20
20510351Screw, M8 x 12. Fixes Centering Ring to Housing - Tighten to 22Nm on Lynxea$1.00
20510358SCREW HEX SELF LOCKING M5X8 8.. Fixes central AV Mount to Motor on LYNXea$0.20
20510368SCREW M5 X 8 . For Latches & Panels on LYNXea$1.90

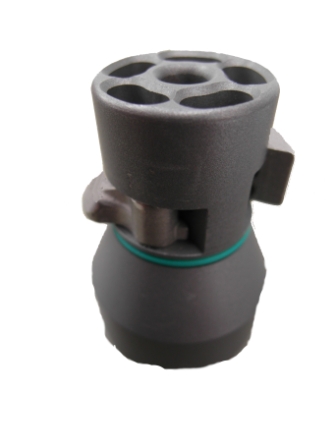

View20907123Autolock system Lynxea$655.00
50131962RIGHT RIBBON CABLE(400MM). For Lynx right latchea$16.00
50131963LEFT RIBBON CABLE (850MM). For Lynx left latchea$13.00
50131966WIRING MAINBOARD-RELAY BOARDea$66.00

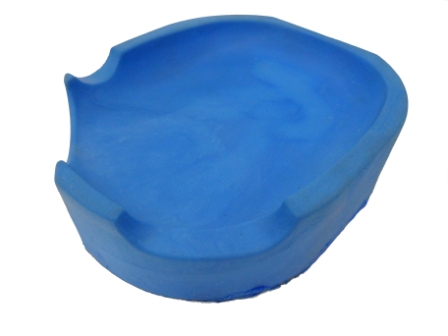

View50132026Compressor damping elementea$88.00

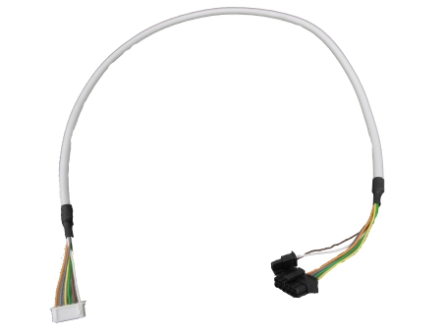

View50132090Wiring GUI main PCBea$60.30

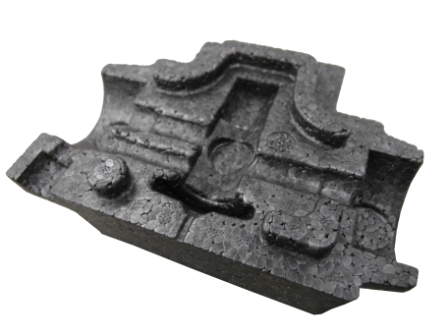

View50132460Insulation foam exp. valveea$90.00

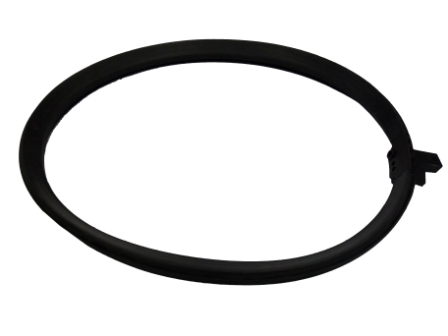

View50133124Gasketea$158.00

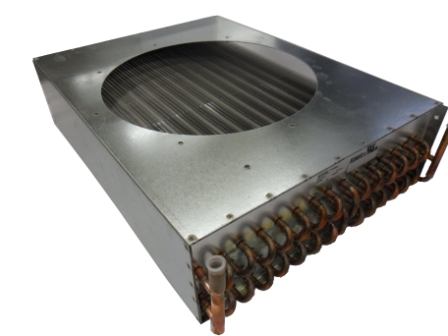

View50134234Condenserea$953.00

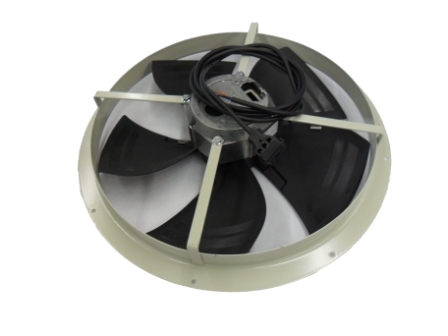

View50134235Fan condenser with mounting ringea$1,100.00

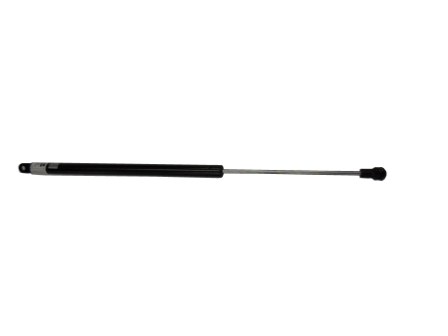

View50134242Gas springea$105.00

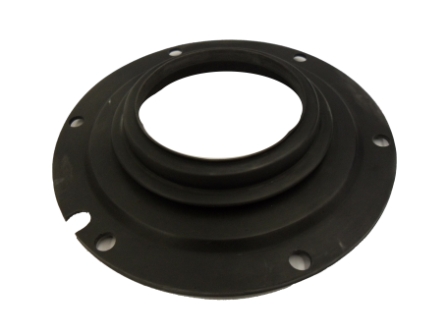

View50134243Vacuum membran sealingea$125.00
50134249REAR PANEL DAMPING ELEMENTea$96.00

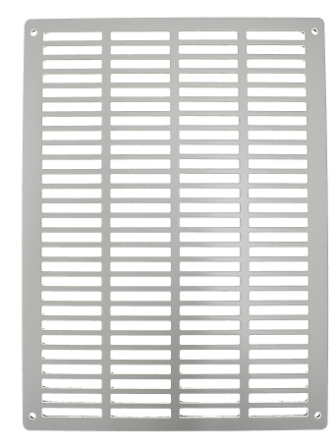

View50134319Grid condenserea$188.00

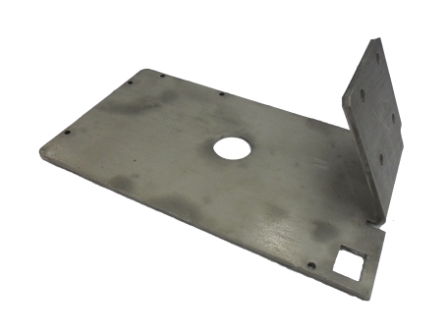

View50134320GUI holderea$94.92

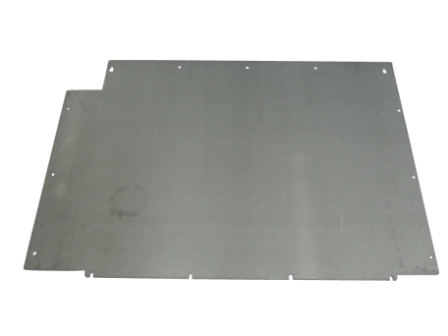

View50134321EMF panelea$43.00

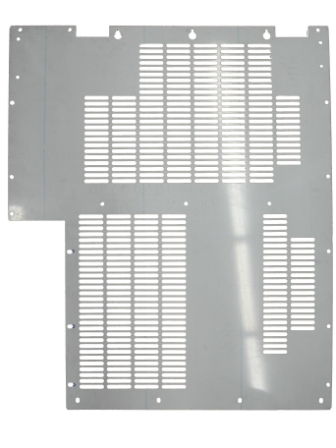

View50134422Rear panelea$453.00

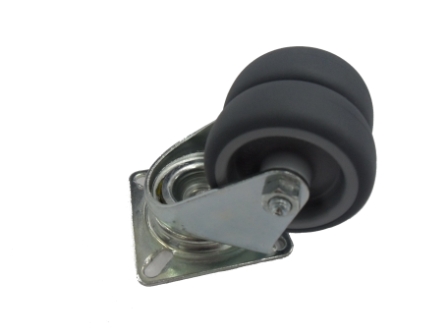

View50134424Castorea$122.00

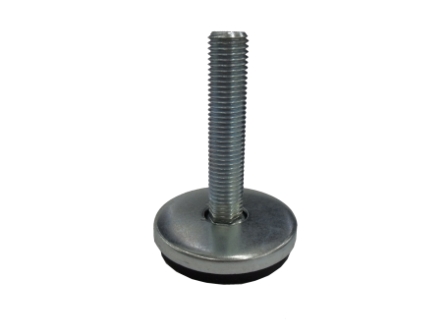

View50134425Stand footea$146.00

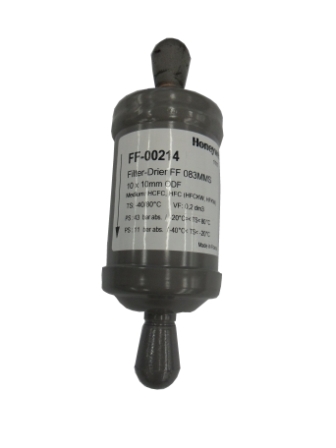

View50134426Filter Dryerea$161.00

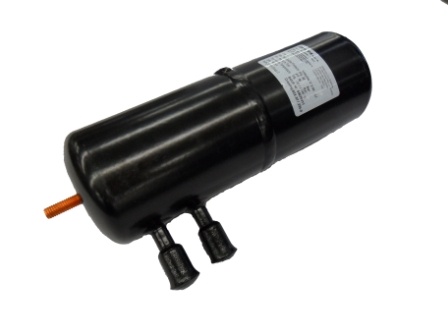

View50134427Accumulator 850 cmüea$373.00

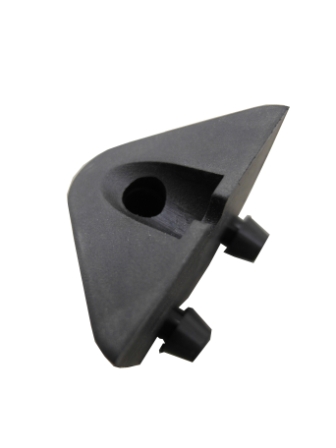

View50134428Holder rotor coverea$91.38

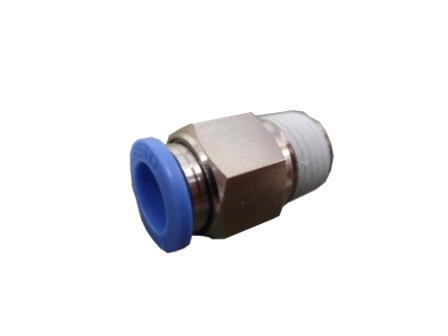

View50134503Connector screwed 1/4-8ea$5.00

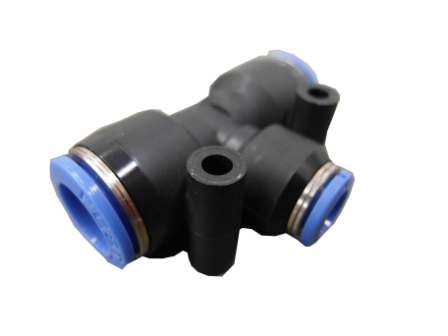

View50134504T-connector 12-8ea$143.00

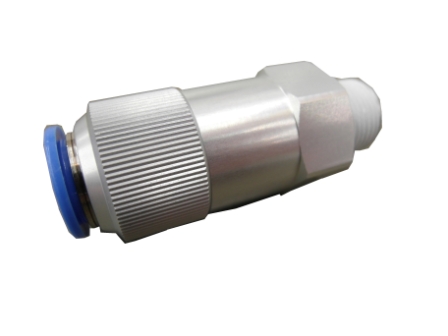

View50134516Back pressure valve 3/8-12ea$435.00

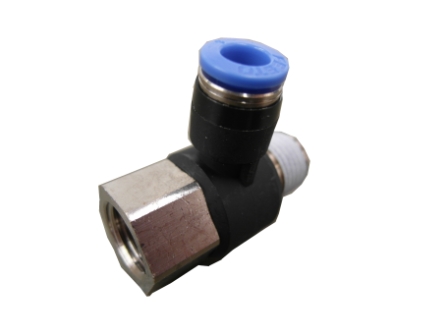

View50134517L-connector screwed 1/4-6ea$72.00

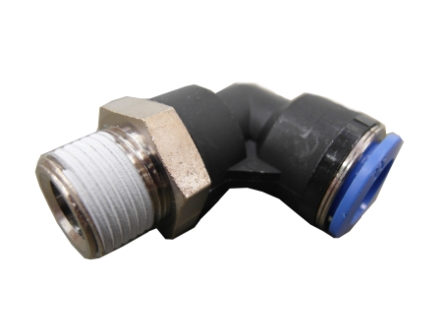

View50134518L-connector screwed 3/8-12ea$59.00

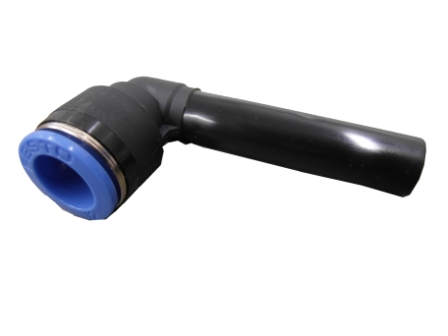

View50134519L-connector longea$110.00

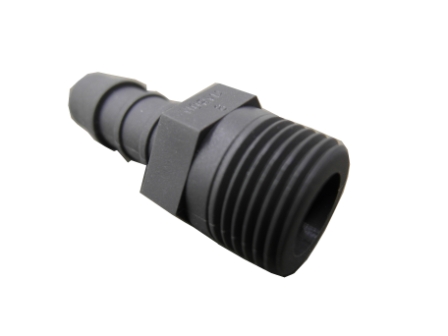

View50134520Screw in fittingea$5.00

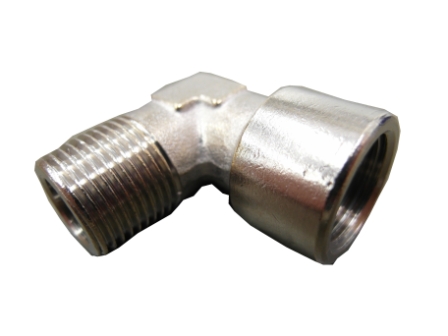

View50134521Elbow-connector screwed 3/8ea$60.00

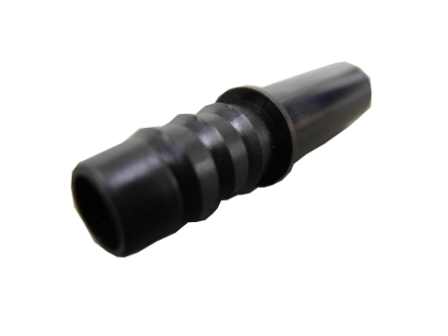

View50134522Plug with hose fittingea$60.00

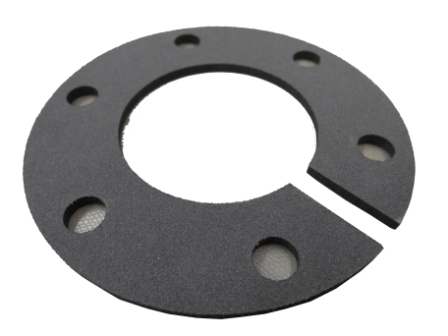

View50134524Insulation of chassisea$8.00

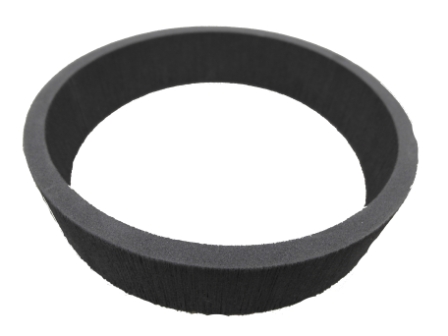

View50134525Insulation evaporatorea$7.60

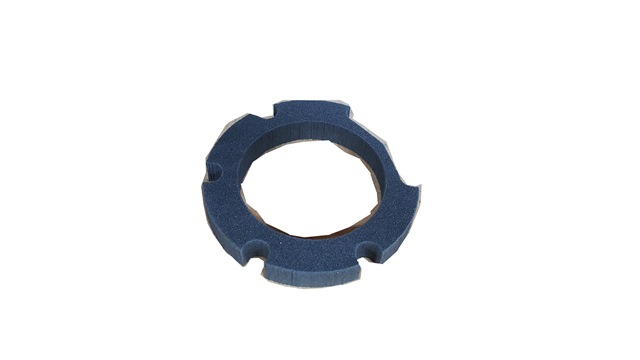

View50134526INSULATION SENSOR CAPea$3.59

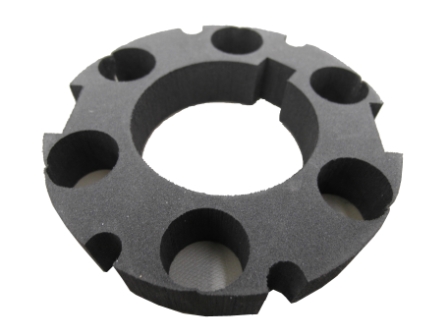

View50134527Insulation anti vibration mountsea$80.40
50134531SCREW, M4 X 30, S/S. For LYNX Sensor Capea$5.00
50134912Exhaust bleeding valveea$74.50

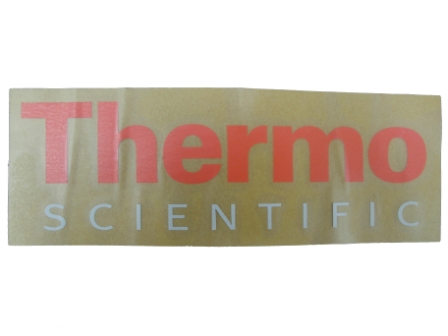

View50135548Sticker Thermo Fisherea$80.40

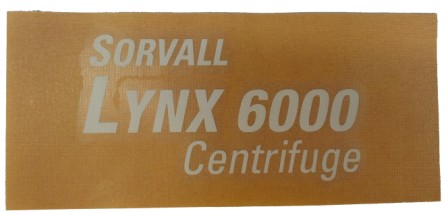

View50135550Overlay Lynx 6000ea$211.47

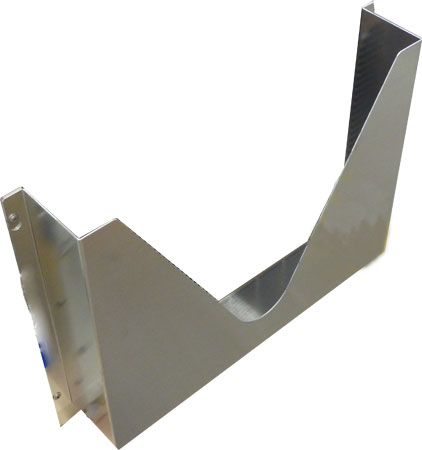

View50135684AIR DUCTea$259.00

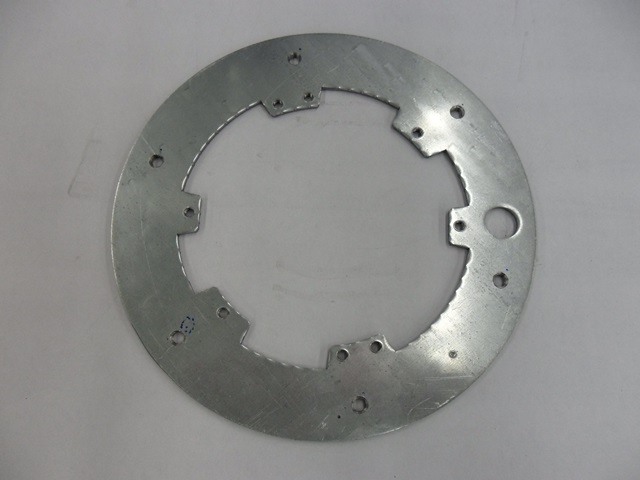

View50135700PLATE, Adjustment Ringea$90.00

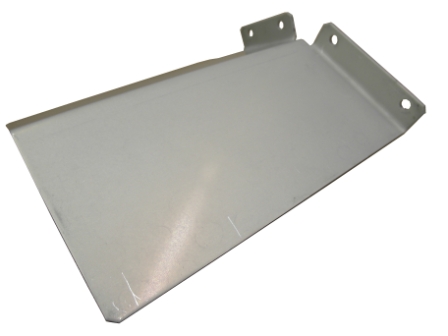

View50135775Motor air separationea$121.00
50135783FLAT SEAL (SENSOR CAP CABLE)ea$13.80

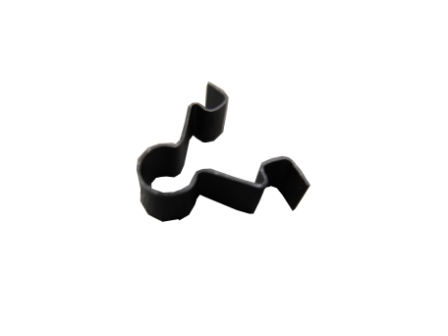

View50135796Rapid spring strapea$0.80

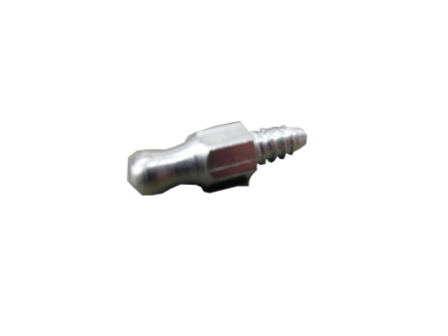

View50135797Rapid fittingea$4.10

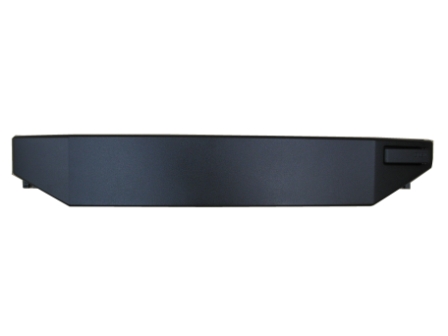

View50135799Decorationpart frontea$408.00

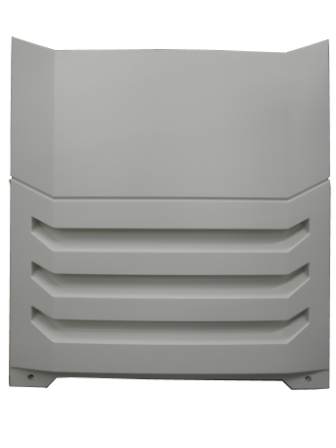

View50135800Front cover completeea$529.00

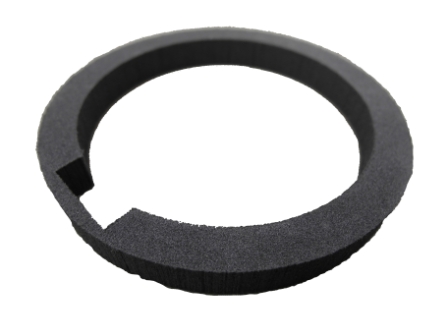

View50136247Upper motor housing insulationea$8.00

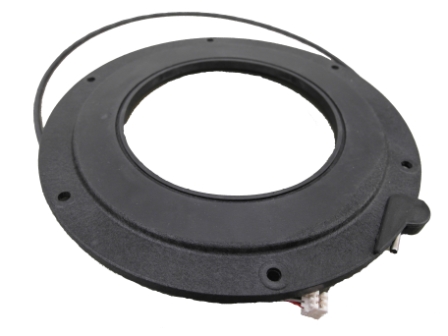

View50136248Hold down assy with temperatureprobeea$362.00
50136788Cover assy complete Lynx 6000ea$1,300.00
50137716MOTOR BASE PLATE ABOVE FANea$25.75
50138326SCREW, M5X6 TORXea$1.25

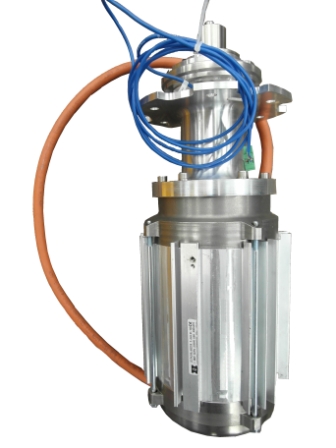

View70900174Motor flex spindleea$6,910.00

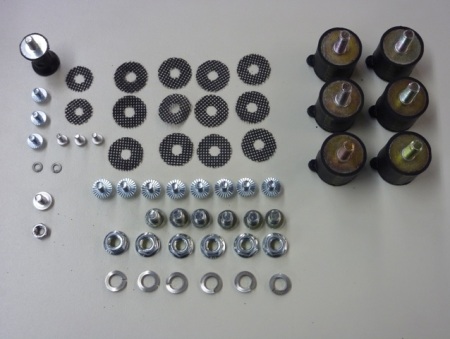

View70900177LYNX SERVICE KITea$763.00
View70902710Latch system Lynxea$1,630.00

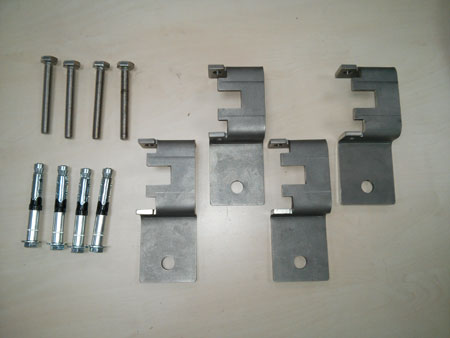

View75006500Seismic Bolt Down, LYNXea$913.00

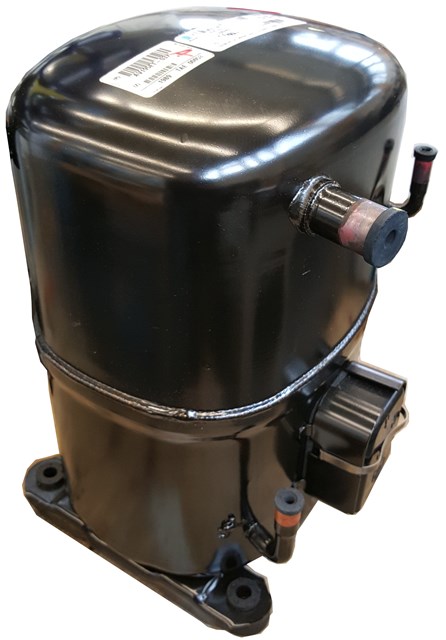

View77375COMPRESSOR, AV195ET-037-B4ea$987.00
View92732POENTIAL RELAYea$147.00
View92733RUN CAPACITORea$133.00
View92734START CAPACITORea$94.20
