Thermo Scientific Jewett Brand Freezers

JLF1230W21

Parts for JLF1230W21

Place an Order

If this order is for an out of service unit, please call Service Support at 800-438-4851 to place your order.

ImageSKUDescriptionPackagingQtyPrice
View04503H01Condenser Fan Bladeea$19.60
View05433H01MOTOR,FAN 14W 230-1-50/60ea$128.00
View195763RETAIN'G BRACKET FOR CORDea$45.10
View24104H01Solenoid Valve - Hot Gasea$95.00
View24105G01ASY, COILea$83.10
View28109G03 SBattery 12V/1.2 Ahea$101.00
View301367H01R.H. Hinge Brkt Bottom Assy - solid doorea$34.10
View301367H02L.H. Hinge Brkt Bottom Assy - solid doorea$27.50
View301459H01Hold Open Assy for Glass Door, LHea$176.00
View301460H01Hold Open Assy for Glass Door, RHea$174.00
View302230H02Door Frame Heater 230vea$64.70
View302363G37 SE-Prom Asy, Hot Gas Defrostea$17.60
View302397G01 SDrawer S/S 4', 12'ea$177.00
View303308H01Fuse, Slo-Blo, 15A 3AB 1.25"ea$8.70
View304708H01Bracket, Hinge - Top - R.H. - solid doorea$23.20
View304708H02Bracket, Hinge - Top - L.H. - solid doorea$23.90
View305101H01Pilaster, Right & Leftea$48.80
View305253H01 Top Front Grill - 12' Frz ea$32.61
View305371H01Caster, 2" Dia, with Brakeea$39.20
View309111H016 Pin RJ45 Harness - Displayea$43.20
View309112H0210 Pin RJ45 Harness - Displayea$52.70
View309159H09Temperature Sensor (green)ea$84.90
View309327H01Fuse, Slo-Blo, 300mA 5x20mmea$16.70
311275H01Fan Bladeea$25.90
View311730H02HEATER, DRAIN 230V 36"ea$47.90
View312096H04Defrost Sensor (white)ea$166.00
View312598H01Pressure Switch, HM200-24-0005ea$41.20
View312921H01Chart Recorder, 6"ea$1,147.00
View314191H01NAMEPLATE, THERMO LARGEea$33.30
View314720H02Overlay with 3 buttons, no light switchea$55.90
View314722H02Bezel, Display Grayea$22.30

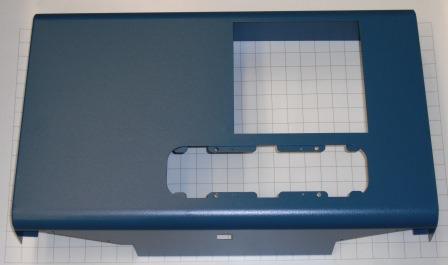

View314737G31Front Panel with Rec, painted 12'ea$504.00
314737G32Front Panel without Rec, painted 12'ea$468.00
View314779H01GRILLE LATCH, MAGNETIC LATCH, 500 - 700ea$11.70
View314807G02FLUSH CTRL PNL STUD ASY W/O SWea$67.30
314810G02 SSolid Door - R.H. 12'ea$697.00
314810G06 SSolid Door - L.H. 12'ea$550.00
View314819G01Hinge Hole Cover, RH (goes with LH door)ea$153.00
View314819G02Hinge Hole Cover, LH (goes with RH door)ea$145.00
View314864H01Door Switch, Rockerea$30.10
View314878H01 Top Rear Grill - 12' Frz ea$498.80
View314890H01Upper Side Panel - Painted 12'ea$110.00
View314894H03Assm, Handle Charcoal Ref/Frz 12-75' - solid doorea$141.00
316013G01 SANTI TIP BRACKET KIT, 12-45ea$36.30
316092H01HARNESS KEY SWITCH, ROHS COMPea$72.00
View316092H02HARNESS KEY SWITCH, ROHS COMPLea$90.70
316324H01DRAIN PAN HTR, 14.5",230V,200Wea$77.70
View316633H01Breaker Retainer - sidesea$15.00
View316633H02Breaker Cover - sidesea$5.00
View316634H01RETAINER, BREAKER STRIPea$11.30
View316634H02COVER, BREAKER STRIPea$5.20
View32961H01Corner Trimea$7.40
View34013G01Lock Strike 23,30' Solid Door - must specify color when orderingea$39.00
View34406G03 SDrawer Slide Assy, L.H. 4', 12'ea$71.20
View34406G04 SDrawer Slide Assy, R.H. 4', 12'ea$71.30
View36481H01Accumulator HGea$106.00
36723G10 SEvaporator Assembly 230vea$1,052.00
36831H02Compressor, Danfoss 230vea$645.00
View38414H01BRKT,MOTOR FAN LS55/95ea$22.70
View39348G03Transformer Assy, 16v Buck ea$371.70
View395172 SLeveling Legs (set of 4)ea$48.40
View47032H34SCREW HEX HEAD, 1/2"-13 X 4",ea$5.00
View49060H01Caster, 2" Dia, with out Brakeea$40.60
View49232H01VALVE,PRESSURE REGULATINGea$195.00
View60196G01 SCONDENSATE SUMP WELD ASYea$111.00
View60523H01SUPPORT,SHELF CLIP KBea$8.10
View60595H23Evaporator, Peerless 230v Hot Gasea$899.00
View61429H03Lock, Comp. Hdwr, solid doorea$36.60
View80080G08 SSENSOR BOTTLE ASY,S/S SERea$51.10
View82225H01Condenserea$328.00
View85089G10Recorder Sensorea$308.00
View90520H11Chart Paper, 6" Refrig (box of 52)box$96.80
View97713H01Key A126ea$22.20
View97916H01EVAP.DRAIN PAN LS95E1 & E2ea$47.50
View98057H01Fan Guardea$15.90





This site contains the most frequently requested Thermo Scientific Laboratory Equipment replacement parts, including those for a number of discontinued products. If you don't find the part you need, please call us at 1.866.984.3766.
If this order is for an out of service unit, please call Service Support at 1-800-438-4851 to place your order.
