Thermo Scientific Forma Brand Ultra-low Temperature Freezers

8930086V

Home > Lab Equipment Parts > Ultra-low Temperature Freezers > Thermo Scientific Forma > 8930086V

Parts for 8930086V

Place an Order

If this order is for an out of service unit, please call Service Support at 800-438-4851 to place your order.

ImageSKUDescriptionPackagingQtyPrice
View122005DOOR KEY (E103 key)ea$24.80
View313320H02COMPRESSOR DECK TUBE ISOLATOR 3/8”ea$5.50
View314208H01DOOR MAGNET, DOOR AND BUS MAGNETea$23.30

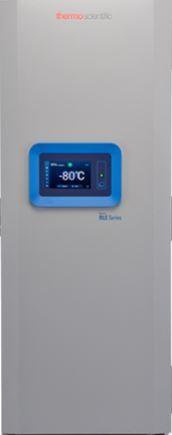

View315007G31OUTER DR ASY,FOAMED 300-HS-1Sea$1,361.55
View315018G01INNER DOOR , ASSEMBLY, 300, 5 Inner door configurationea$305.00
View315018G06INNER DOOR , ASSEMBLY, 300, 4 Inner door configurationea$236.00
View315019G01SHELF ASSEMBLY, 300ea$356.00
View315024H01CASTER, 2”ea$36.70
View315096H01GASKET, OUTER, OUTER DOOR, 300. (Measures 22.74 x 57.34 to outside edges)ea$349.00
View315096H06GASKET, INNER, OUTER DOOR, 300. (Measures 20.57 x 55.17 to outside edges)ea$336.00
View315193H01HINGE LEAF,TOP/BOTTOM, INNER DOORea$5.00
View315201H01BATTERYCONNECT, MAIN BATTERY HARNESSea$5.20
View315202H01BATTERYCONNECT, BACK UP SYSTEM HARNESSea$5.20
View315203H01DOORSWITCH HARNESSea$79.70
View315204H01THERMOCOUPLE,1STSUCTION HARNESSea$41.60
View315204H02THERMOCOUPLE,CONDENSER AIR IN HARNESSea$49.10
View315204H06THERMOCOUPLE,2NDSUCTION HARNESSea$74.30
View315204H07THERMOCOUPLE,CONDENSEROUT(LIQUID) HARNESSea$87.50
View315204H09THERMOCOUPLE,2NDSUMP HARNESSea$83.10
View315206H01RTD PROBE 1000 OHM, CONTROL/CABINET SENSOR HARNESSea$274.00
View315206H02RTD PROBE 1000 OHM, BUS HARNESSea$281.00
View315206H04RTD PROBE 100OHM,CHARTRECORDER HARNESSea$84.90
View315229G01 SPRESSURE EQUALIZATION PORT ASSEMBLYea$250.00
View315231H01PEP HEATED BRASS TUBEea$22.80
View315231H02PEP ENDCAP,TUBEea$13.00
View315306H01BATTERY BRACKETea$40.00
View315306H02BRACKET, BATTERY,RHea$40.00
View315323H02HID, RF TRANSPONDER CARD, W/ THERMO LOGOea$25.40
View315327H01DOOR LATCH CAMFOLLOWER,ea$116.00
View315329G03ASSEMBLY HINGE - 6" OUTER DRea$27.40
View315330H03COVER, HINGE, OUTER DOORea$2.60
View315342H01RELAY ENCLOSURE 12 VOLT COOLING FANea$63.80
View315362H01PILASTER, SHELF. (replaced with 325021H01)ea$13.50
View315367H01RTD, PROBE HOLDERea$37.90
View315373H01PEP,CHECKVALVE COVERea$5.00
View315373H02PEP, BASECHECKVALVEea$5.00
View315377H05HARNESS, MAIN BOARD TO DISPLAYea$457.00
View315393H01PEPHEATER HARNESS,DISPLAYBOARDea$167.00
View315461H01BRACKET, REED SWITCH, GRILLEea$44.80
View315496H01BUS TUBE, BUS TO ELBOWea$26.00
View315513H01GRILLE LATCH, PUSH TO CLOSE, 300/400 ea$50.50
View315527H01BUS DOORSWITCH HARNESSea$67.30
View315548H03HID SOLENOID, REVCOea$21.00
View315558G02 SSIDE PANEL ASSEMBLY,RH , DECK, 88000/TSU/HFUea$299.00
View315559G02 SSIDE PANEL ASSEMBLY,LH , DECK, 88000/TSU/HFUea$299.00
View315628G02DOOR CAM LATCH MOUNT ASSEMBLY W/ HID, 88000/TSUea$502.00
View315672H01REMOTE ALARM CONNECTORea$20.20
View315674G01 SBUS, PRESSURE EQUALIZATION VENT PORTea$141.00
View315688H01DOOR, HINGE SHIMea$15.70
View316654H01BRACKET,CORD RETAINER,ULT/REFea$60.40
View316654H02BRACKET,CORD RETAINERea$18.90
View322227G131ST STAGE COMP KIT 230V/50 1Sea$828.10
View322228G132ND STAGE COMP KIT 230V/50 1Sea$888.00
View322229G02  $153.00
View322420G01STAND OFF ea$8.00
View322556H01INSULATION LH, FILTER DRYER,COea$5.20
View322556H02INSULATION RH,FILTER DRYER,COLea$5.20
View325062H01DOOR HANDLE SHIM – 88000/TSUea$14.60
View327002H01Inverterea$508.00
View327882H01I/O BOARD LOOP BACK CONNECTORea$2.60
327994G01WELD ASSY, MOUNT,CAM LATCH ULTea$33.15
View327995G01ASY,MOUNT CAM LATCH HID ULTea$392.00
View328045G01ASSY, HANDLE, OVERMOLD, ULTea$71.30
View328045G02ASSEMBLY, HANDLE, ACCENT, ULTea$85.50
View328045H03HANDLE,SOLID,ULTea$52.50
View328074G01 SSRV ASSY, MEDIUM COLD BOX 1Sea$755.00
View328074G02 SSRV ASSY, MEDIUM COLD BOX VSCea$1,020.00
View328140G01ASSY, RELAY ENCLR, 208-250 VSCea$1,590.00
View328221H01PLUG, USB, WATER PROOFea$5.20
View33443G11OIL SEPERATOR KITea$697.00
View400159BATTERY, MAIN SYSTEMea$36.20
View45200H105Paint, Facet Lt Grey, Aerosolea$21.20
View45200H106Paint, Facet Lt Grey, Liquidea$17.70
View45200H117PAINT, FACET METALLIC, AEROSOLea$26.80
View45200H118PAINT, FACET METALLIC, LIQUIDea$20.30
View460169RELAY ENCLOSURE POWER INLET, 16/20A MALEea$72.10
View48994H01SUPPORT,SHELF W/TAB SS KBea$8.10
View48994H02SUPPORT,SHELF W/O TAB SS KBea$8.00
View75380H01FILTER DRIER KANBANea$33.80





This site contains the most frequently requested Thermo Scientific Laboratory Equipment replacement parts, including those for a number of discontinued products. If you don't find the part you need, please call us at 1.866.984.3766.
If this order is for an out of service unit, please call Service Support at 1-800-438-4851 to place your order.
