Thermo Scientific Brand Biological Safety Cabinets

Related Documents

Not sure what part you need? Check the links below for exploded parts lists and other helpful information.

User Manual
User Manual

Safe 2020 1.5

Parts for Safe 2020 1.5

Place an Order

If this order is for an out of service unit, please call Service Support at 800-438-4851 to place your order.

ImageSKUDescriptionPackagingQtyPrice
3002007STRAIN RELIEVE LOOP W/SOCKETea$1.00
View3039297HUTMU M4 DIN 917 A4-1.4571ea$18.00
View3161568KIT,HEATER 1100 66504Kea$635.00
View3651539RUBBER GROMMET,D=7,D=23,5PVCea$1.10
View3667303PLASTIC TUBING, 9MM DX6 MMea$1.00
View50033991Sockets, Fluorescent Lightea$5.00
View50035339GROMMET FOR CABLE GUARD TUBEea$16.00
View50042227RETAINING RING D1=10 FORM ZAea$1.00
View50043203POSITION SWITCH W/LEVER 34MMea$24.00
View50043783Receptacle Cap UV Connectionea$21.18
View50043931FLUORESCENT LMP,36WECO 1.5/1.8ea$11.80
View50044214SILICONE SEAL CMPD SISTA F109ea$14.29
View50046294Label Adhesive, UVea$6.00
View50049871Pilot Switchea$28.00
View50057739FOOT LEVELERea$53.32
View50063118Fuses, 16A Mains Inlineea$13.71
View50066588Wiring Harness, Display CAT5 Cableea$47.60
View50068051Screw, M5x10 Sash Cable Securingea$3.00
View50071701Pressure Sensorea$221.00
50072685Flat table module 300 mmea$93.40
View50073285Bolt, Sash Cable Nylon Guide Pulley Mountingea$40.42
View50073294Terminal UV PowerSupply 120Vea$13.00
50073356Bezel for Media Connectionea$18.00
View50073358SCREW PLUG G 3/8 INCHea$1.00
50073370Lift Strap for Workplatesea$9.00

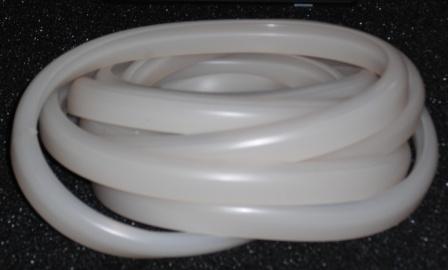

View50073576Gasket, KS 15 Front Sash Sealingea$140.00
View50073605Frame with Lid Outlet KSea$16.00
View50073606MAINSOUTLET (SOCKET) "D"ea$7.00
View50073613Dummy Plug for UV Connectionea$18.00
View50073690Micro Switch, Sash Positionea$18.30
View50073715Fuses, 5A Receptacleea$9.00
View50073996Pulley, Sash Cable Nylon Guideea$45.62
View50074769Spacer, Operating PCB Foilea$3.00
50075642DOUBLE SIDE ADHESIVE TAPEea$96.37
View50076199Glass, Side Wall Replacementea$214.00
View50076359SLIDE FOR HINGE WINDOW LATCHea$8.00
View50076811Bolt, Front Door Hingedea$13.00
View50076845Bushing, Front Door Hingedea$5.00
50076853Z-PROFIL DOWNFLOW PLENUM KSea$2.00

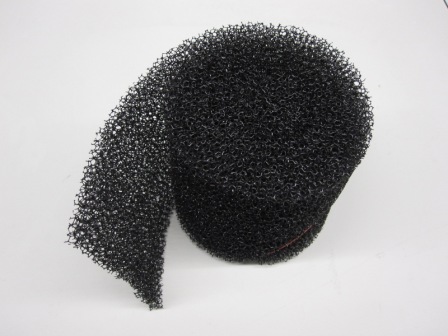

View50076921Grid pre-filter for 1.5, 1.8 cea$99.30
View50077087Cables, KS 15/18 Left and Right Sashea$66.00
View50077180DOWNFLOW BLOWERea$1,011.00
View50077219DB-25 Communications Cableea$22.21
View50077227Wiring Harness, Right Side UV Receptacle Outletea$23.00
50077228Wiring Harness, Pressure Switch Circuitea$77.00
50077230CNTRL BOX HOUSING WIRE KIT KSea$65.00

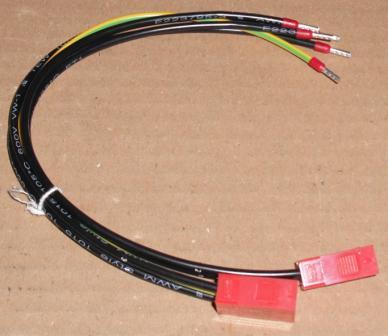

View50077231CNTRL BOX HOUSING WIRE KIT ADDea$25.00
View50077315Pulley, Sash Motor Cableea$25.00
View50077505WING SCREW M5X16 DIN 316 EXHea$1.00
View50077703Thumbscrews, Plenum Dress Cover Mountingea$25.90
View50077780Front Sash Assembly, KS 15ea$1,489.01
View50078013CABLE GUARD TUBE, 610mm KS 15ea$25.00
50078283EXHUAST PLENUM FRAME, KS 12/15ea$162.47
50078304EX. BLOWER LEFT ADJ. KS 9/12/ea$798.00
View50078324CAP SCREW, M 4 X 30ea$4.23
View50078618Actuator Set w/Screws, Position Switch Nylonea$387.68
View50081146Battery, 9V Front Sash Emergency Operationea$55.00
View50081150Battery Clip, Front Sash Emergency Operationea$4.00
View50081154Wiring Harness, Front Sash Emergency Operationea$43.00
50081522CROSS SECT FRNT WINDOW KS15ea$57.00
50081723Operating Foil PCBea$263.25
View50082023DRAIN VALVE, KSea$162.00
50082060Pneumatic Spring, KS 15 Sash Liftingea$40.00

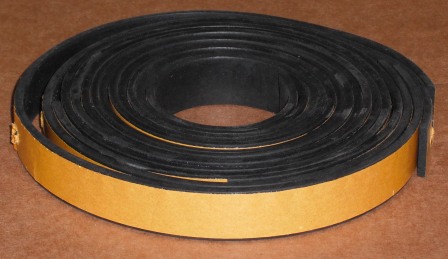

View50082696Gasket, KS 15 Plenum Cover Sealingea$90.00
View50085123Dress Cover, KS 12 Plenumea$500.00
50107926SPACER TUBE FOR MOTOR SHAFTea$1.00

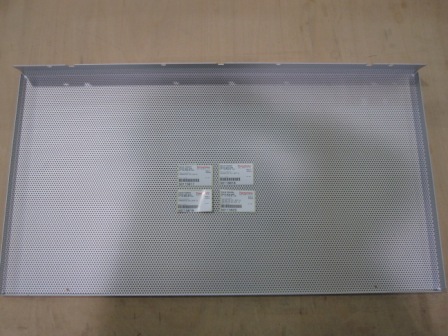

View50115619LAMINATOR KS/KSP 15ea$158.73
50117927FILTER H14 MAIN 1.8 457X1830X0ea$436.00
View50117929HEPA Filter, KS 12/15 Exhaustea$1,075.00

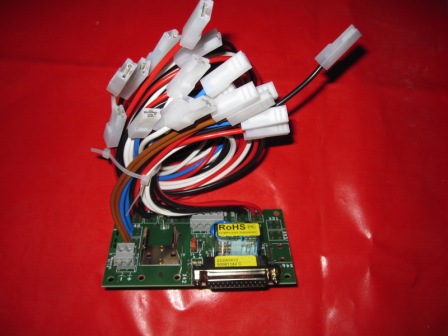

View50118174Micro Switch PCB, KS 15/18ea$750.00
56650737SCR M4X10 DIN 965-4.8 A4Eea$2.00
View56650741SCR M4X6-DIN 964-4.8 A4Eea$5.00
View56650750Screws, M4x12 Motor Mountingea$7.00





This site contains the most frequently requested Thermo Scientific Laboratory Equipment replacement parts, including those for a number of discontinued products. If you don't find the part you need, please call us at 1.866.984.3766.
If this order is for an out of service unit, please call Service Support at 1-800-438-4851 to place your order.
