HFU600TA65

Home > Lab Equipment Parts > Ultra-low Temperature Freezers > Thermo Scientific HERAfreeze >  HFU600TA65

Parts for HFU600TA65

Place an Order

If this order is for an out of service unit, please call Service Support at 800-438-4851 to place your order.

ImageSKUDescriptionPackagingQtyPrice
View122005DOOR KEY (E103 key)ea$17.60
View313320H02COMPRESSOR DECK TUBE ISOLATOR 3/8”ea$5.50
View314208H01DOOR MAGNET, DOOR AND BUS MAGNETea$16.60
View314226H01RECEIVER/DRIER BRACKETea$15.00
View314644G01DOOR HANDLE LOCKea$58.10

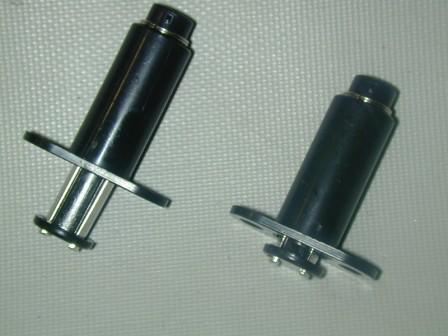

View314779H01GRILLE LATCH, MAGNETIC LATCH, 500 - 700ea$11.70
315007G23DOOR,OUTER DOOR ASSEMBLY, 600, HFUea$1,118.00

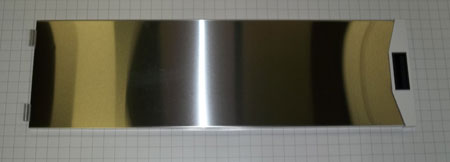

View315018G04INNER DOOR , ASSEMBLY, 600, 5 Inner door configurationea$305.90

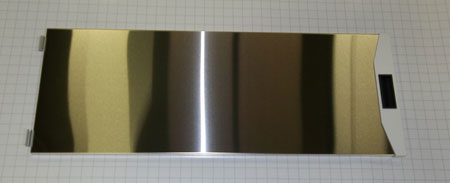

View315018G09INNER DOOR , ASSEMBLY, 600, 4 Inner door configurationea$316.00

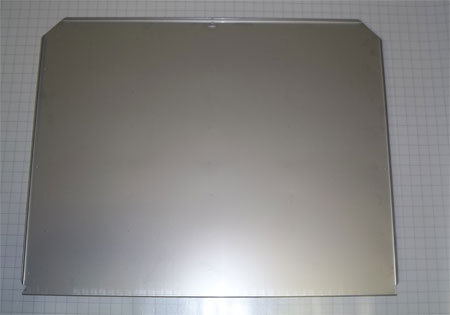

View315019G04SHELF, ASSEMBLY, 600ea$469.00
View315023H01CHARTRECORDER,INKLESS,BACKUPBATTERY,DCVOLTea$933.00
View315024H01CASTER, 2”ea$28.00
315041H01EXPANSION TANKea$125.00
View315075H01CONDENSER,WITHDESUPERHEATER12x12x5Rea$417.00
315080G01 SCOLDBOX ASSEMBLYea$765.00

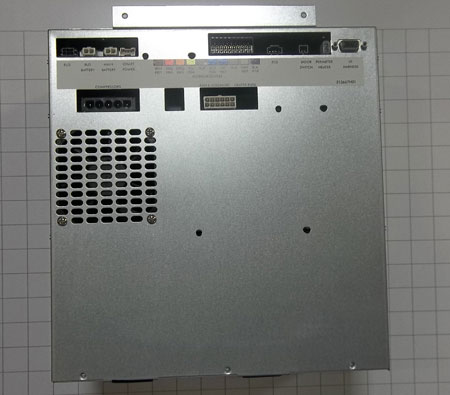

View315081G01RELAY ENCLOSURE ASSEMBLY, “A” voltageea$2,014.00
315084G02 S REAR PANEL ASSEMBLY, 400-700ea$41.40

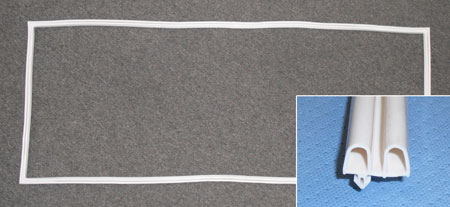

View315096H04GASKET, OUTER, OUTER DOOR, 600. (Measures 39.34 x 57.34 to outside edges)ea$300.00

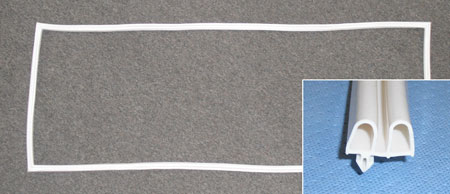

View315096H09GASKET, INNER, OUTER DOOR, 600. (Measures 37.17 x 55.17 to outside edges)ea$290.00

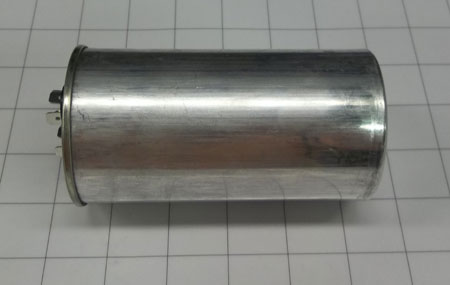

View315146H01CAPACITOR,85mF “A” voltageea$66.00
315146H04START CAPACITOR 115 VOLT UNITS, 340 MFDea$22.90

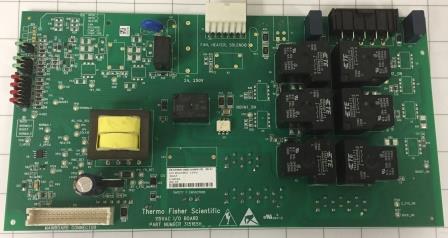

View315165H01HIGH VOLTAGE BOARD – I/O BOARD, 115 VOLTSea$350.00
View315193H01HINGE LEAF,TOP/BOTTOM, INNER DOORea$5.00
View315200H01BUS, BACK UP SYSTEM HARNESSea$58.00
View315201H01BATTERYCONNECT, MAIN BATTERY HARNESSea$5.20
View315202H01BATTERYCONNECT, BACK UP SYSTEM HARNESSea$5.20
View315203H01DOORSWITCH HARNESSea$57.60
View315204H01THERMOCOUPLE,1STSUCTION HARNESSea$29.80
View315204H02THERMOCOUPLE,CONDENSER AIR IN HARNESSea$35.40
View315204H06THERMOCOUPLE,2NDSUCTION HARNESSea$54.80
View315204H07THERMOCOUPLE,CONDENSEROUT(LIQUID) HARNESSea$64.60
View315204H09THERMOCOUPLE,2NDSUMP HARNESSea$61.30
View315206H01RTD PROBE 1000 OHM, CONTROL/CABINET SENSOR HARNESSea$203.00
View315206H02RTD PROBE 1000 OHM, BUS HARNESSea$203.00
View315206H04RTD PROBE 100OHM,CHARTRECORDER HARNESSea$84.90
View315221G01UI ASSEMBLY, UXF/HFUea$695.00
View315221G03UI ASSEMBLY WITH HID, UXF/HFUea$961.30
View315229G01 SPRESSURE EQUALIZATION PORT ASSEMBLYea$182.00
View315231H01PEP HEATED BRASS TUBEea$22.80
View315231H02PEP ENDCAP,TUBEea$13.00

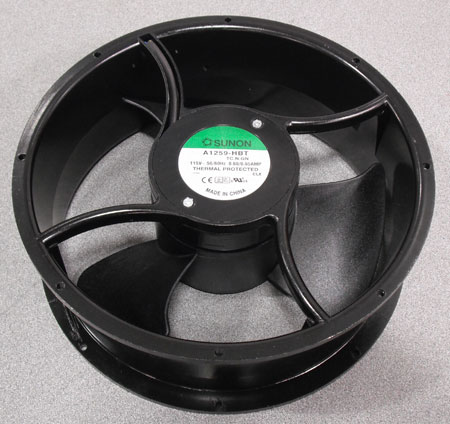

View315251H01CONDENSER FAN,TUBEAXIAL, 115 and 208-230 volt, 60 Hz Models ea$304.00
View315268H01INSULATION,SOUNDDEADENING,DECKSIDECOVERea$32.00
View315270H01INSULATION,SOUNDDEADENING,BIG,CABINETBOTTOMea$38.00
View315270H02INSULATION, SOUND DEADENING, SMALL, CABINET BOTTOMea$12.00
315281G03 SFRONT GRILLE DUMMY DOOR ASSEMBLY, 88000/TSU/HFU, 500-700ea$153.00
315281G04 SFRONT GRILLE CHART DOOR ASSEMBLY, 88000/TSU/HFU, 500-700ea$268.00
View315282H01CIRCUIT BREAKER SWITCH FOR 115 VOLT 20 AMP RELAY ENCLOSUREea$78.70
315284G18 SFRONT GRILLE ASSEMBLY, HFU, 600ea$281.00
315285G03 SCHART DOOR, FORMA/HERA/THERMO 500-700ea$120.00
315285G04 SCHART RECORDER DOOR, FORMA/HERA/THERMO 500-700ea$237.00
View315306H01BATTERY BRACKETea$40.00
View315323H02HID, RF TRANSPONDER CARD, W/ THERMO LOGOea$18.60
View315327H01DOOR LATCH CAMFOLLOWER,ea$86.50
315328G01 SDOOR HANDLE ASSEMBLY, UXF/HFUea$128.00
View315329G01HINGE ASSEMBLY-6", OUTER DOORea$71.90
315335H01HID 9V BATTERY HARNESSea$17.00
View315341G01POWER SUPPLY BOARDea$306.00
View315342H01RELAY ENCLOSURE 12 VOLT COOLING FANea$47.70
View315349G01DOOR,CAM LATCH MOUNT, UXF/HFUea$78.20
View315349G03DOOR,CAM LATCH MOUNT, UXF/HFU WITH HIDea$110.00
315359H01TRANSFORMER 115 VOLT ea$240.00

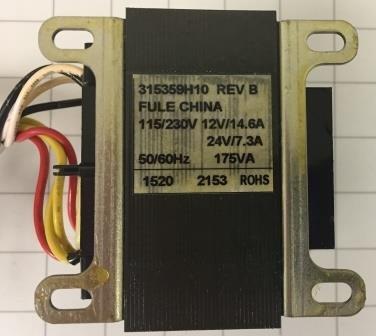

View315359H10TRANSFORMER 115 VOLT 175W, LEADEDea$188.00
View315362H01PILASTER, SHELFea$13.50
View315363H01RIGHT FILTER DRIER INSULATION COVER ea$44.60
View315364H01INSULATIONLH,FILTERDRYER,COLDBOXea$7.30
315364H02INSULATIONRH,FILTERDRYER,COLDBOXea$7.30
View315367H01RTD, PROBE HOLDERea$27.30
View315373H01PEP,CHECKVALVE COVERea$5.00
View315373H02PEP, BASECHECKVALVEea$5.00
View315393H01PEPHEATER HARNESS,DISPLAYBOARDea$123.00
View315447H01FILTER DRYER, SPORLAN, C-082-S-HH,ea$62.50
315452H01CAPACITORHOLDER for “A” voltage relay enclosureea$23.90
315457G01 SBATTERY BRACKET ASSEMBLYea$97.00
View315461H01BRACKET, REED SWITCH, GRILLEea$32.90
315495G01BUS, LN2 DELIVERY TUBE ASSYea$86.00
View315496H01BUS TUBE, BUS TO ELBOWea$26.00
315497H01BUS, LN2 TUBE, ELBOW TO TANK INSIDE ea$342.00

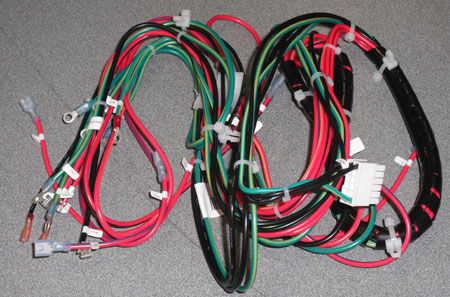

View315505G04DECK HARNESS, 600ea$143.00
View315524H01CHART RECORDER HARNESSea$27.00
View315527H01BUS DOORSWITCH HARNESSea$67.30
View315533H01USER INTERFACE ENDTRIM, UXF/HFUea$5.80
View315534H01USER INTERFACE MIDDLETRIM, UXF/HFUea$5.50
View315538G01HINGE ASSEMBLY , INNER DOOR, 5 Inner Door Configurationea$191.00
View315538G02HINGE ASSEMBLY, INNER DOOR, 4 Inner Door Configurationea$177.00
View315548H01HID SOLENOID HARNESSea$5.20
View315552H01COMPRESSOR MOUNTING GROMMETea$5.60

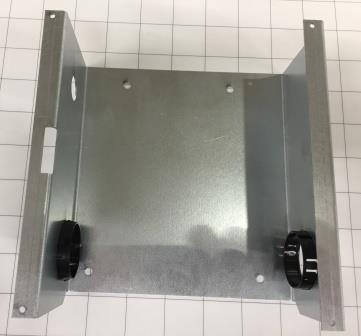

View315554H01BRACKET, CHART RECORDER, 500-700ea$30.10
View315558G02 SSIDE PANEL ASSEMBLY,RH , DECK, 88000/TSU/HFUea$217.00
View315559G02 SSIDE PANEL ASSEMBLY,LH , DECK, 88000/TSU/HFUea$217.00
315577H01GRILLE MAGNET BRACKET, 500-700ea$20.90
315579G09 SGRILLE FRAME ASSEMBLY, 88000/TSU/HFU , 600ea$250.00
315591G09 SGRILLE, PAINTED ASSEMBLY, 88000/TSU/HFU 600ea$177.00
315609G01 SBUS, LN2 BUS ASSEMBLYea$2,467.14
315610G01 SBUS, CO2 BUS ASSEMBLYea$2,295.00
View315613H01DOOR LABEL, HFU SERIESea$61.00
View315628G01DOOR CAM LATCH MOUNT ASSEMBLY W/ HID, UXF/HFUea$372.00
View315636H01QUICK START GUIDEea$23.90
View315672H01REMOTE ALARM CONNECTORea$14.30
View315674G01 SBUS, PRESSURE EQUALIZATION VENT PORTea$40.18
View315688H01DOOR, HINGE SHIMea$11.00

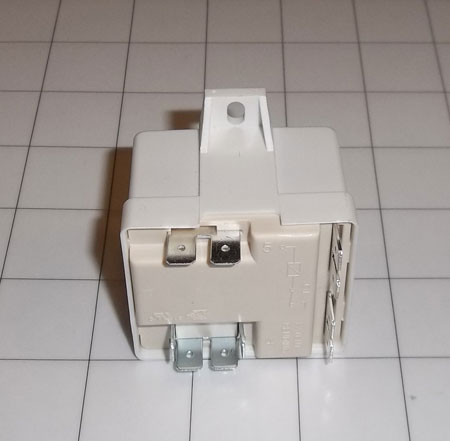

View315707H01COMPRESSOR START RELAY 115 VOLTea$76.50
315708G02Capacitor Start Kit, 115 Voltea$308.00
322227G041st Stage Compressor Kit 115 Volt, 60Hzea$1,317.00
322228G012nd Stage Compressor Kit 115 Volt, 60 Hzea$1,296.00
View322229G012nd Stage Filter Drier Kitea$136.00
View322420G01STAND OFF ea$5.50
325061H01DOOR HANDLE SHIM – UXF/HFUea$10.90
View33443G09Oil Separator Kitea$446.00
View400159BATTERY, MAIN SYSTEMea$127.00
View430263POWER CORD, 115 volt/20ampea$77.60
View460169RELAY ENCLOSURE POWER INLET, 16/20A MALEea$51.90
85355G01BUS, CO2 DISCHARGE TUBE ASYea$253.00
