Thermo Scientific LabLine/MaxQ Brand Shakers

SHKA4000-5

Home > Lab Equipment Parts > Shakers > Thermo Scientific LabLine/MaxQ > SHKA4000-5

Parts for SHKA4000-5

Place an Order

If this order is for an out of service unit, please call Service Support at 800-438-4851 to place your order.

ImageSKUDescriptionPackagingQtyPrice
View019-445-00SHAKER MECHANISM ASSY 11Xea$1,560.00
0913714 CR 48X96sht$499.00
View10221SCREW MA .375-16X1.25 SSea$0.60
View10266WSH FLAT .406X.734X.063 Sea$4.80
View1027610 SS SPRING LOCK WASHERea$7.30
View10506BINUT ACORN 8-32 SSea$6.60
View140-236-00BALLBEARINGea$77.90
View140-290-00ANGULAR CONTACT BALL BEARea$60.70
View150-287-00DRIVER PULLEY P/Zea$69.70
View150-318-00DRIVE BELTea$8.10
View160-180-00WIRE FAN GUARD 4"ea$5.00
165-515-01CTN 37X27.5X23.5 TUBE Kea$24.00
165-515-05CTN 37X27.5X4 CAP Kea$10.15
View170-832-00BALL STUD MOUNTING BRKT Nea$5.00
View172-398-00MOTOR BRACKETea$15.60
View172-455-00COVER SWITCH ACTUATORea$3.00
View227-598-00ANALOG SPEED CONTROL-120V. (Replaced by CN1414X1)ea$293.00
View228-612-00TACH PCB W/27KOHM 1/2W REea$37.60
View270-135-00TIMER SPST 60 MINUTE WITHea$66.40
View330-124-00CIRCUIT BREAKER, 15 AMPea$58.20
View330-399-00CIRCUIT BREAKER 0.8AMPSea$48.30
View330-403-00DISC THERMOSTAT 320 DEG Fea$34.94
View340-398-00HEATER, 1000W, 120Vea$120.00
View350-016-00SILICONE INSULAT'G SLEEVEft$5.20
View350-069-00CERAMIC BUSHINGea$16.40
View370-388-00MOTOR DC PERMANENT MAGNETea$593.00
View400-233-00RELAY SOLID STATE 25A280Vea$97.70
View410-632-00IMMERSIBLE RTD TEMP SENSOea$125.00
View420-248-00PWR INLET,FLANGE MOUNTea$10.00
View440-080-00SWITCH SPST N.O. PB, 15AMea$49.30
View440-396-00POWER SWITCH-ROUNDea$9.70
View440-397-00MINI ROCKER SWITCHea$12.90
View470-264-00CORD 16-3 SJT 120 13A 79ea$103.00
View485-360-003200 CAL CONTROLER HBea$543.00
View500-640-00BASIC EXTERNAL RETAININGea$1.90
View541-102-08SCREW 10-32 X 1/2 HEX HEAea$1.90
View544-082-03SCREW 8-32X3/16 HX CP SETea$2.00
View560-275-00KNOB, LOW PROFILE 1.5 DIAea$10.00
View560-278-00COVER HANDLEea$53.00
View562-184-10THUMBSCREW,KNURLHEAD 10-3ea$7.50
View564-397-00FLAT WASHERea$3.50
View570-368-00COVER HINGEea$41.50
View590-466-00INSULATOR, EVAPORATOR BACea$13.10
View590-474-00INSULATION PANEL, CHAMBERea$56.40
View590-474-01INSULATION PANEL,CHAMBERea$59.76
View590-477-00FRONT SEALER STRIP 22.09Xea$21.70
View590-503-00TAPE FOAM BLK .125X.625X8ft$7.90
View600-125-00KNOB LOCKING TAB 5/8X1-5/ea$4.14
View615-432-00COVER STIFFENERea$86.70
View660-111-00TACHOMETER 0-500RPM ROUNDea$248.00
View682-673-00TIME/SPEED/TEMP OVERLAY Aea$70.06
View720-574-00SHAKER NOSEPIECE 18 X 18ea$130.00
View720-588-01GLASS COVER, HI-TEMPea$1,360.00
790-316-13PLATFORM MAT 17-1/4SQea$47.00
View790-423-00RUBBER FOOTea$6.80
View800-101-00UPPER BALL STUDea$9.60
View803-630-00UPPER BEARING HOUSINGea$66.60
View803-632-00DRIVER CRANKea$165.00
View803-633-00IDLER CRANKea$115.00
View805-932-00PLATFORM HOLDER PANea$284.00
View805-938-00BACK PANEL, STANDARDea$167.00
View805-952-00COVER BOTTOM PANELea$91.20
View805-982-00SEALER PLATEea$52.70
View806-044-00PLATE FILLERea$13.70
ViewADX15LOCKTITE THREADLOCK 222MSea$164.00
ViewADX7ADHESIVE LOCTITE GREENea$296.00

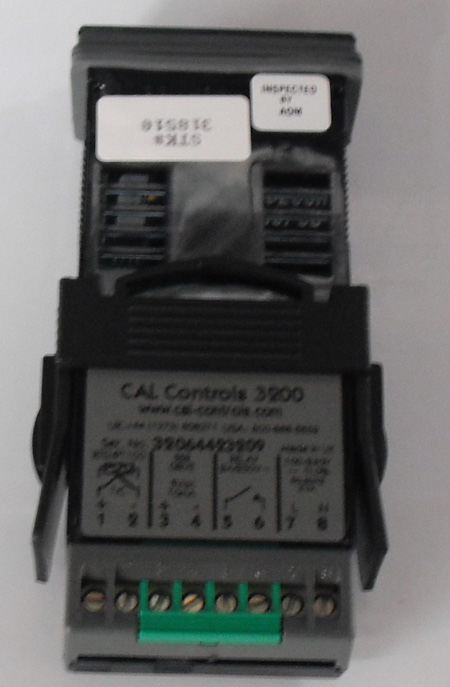

ViewCN71X126PCONTROL CONFIGURED 3200ea$489.24
ViewCNX177THERMOSTATea$316.00
ViewDLX150ELECT SHOCK WARNING 1/2"Dea$1.14
ViewFAX29TUBEAXIAL FAN,106CFM,115Vea$224.00
ViewFCX45RETAINING RING INT 1.526ea$3.50
ViewFNX1016-32 ZP LK/WASH HEX NUTea$2.60
ViewFNX117NUT KEPS 8-32 SSea$23.80
ViewFNX55NUT PEM 8-32 SS MIN .056ea$2.00
ViewFSX128SCREW ST .25-20X.25 BO IHea$2.07
ViewFSX15SCREW T23 8-32X.312 PS Pea$3.60
ViewFSX2146-32 X 1/4 SS PHP SCREWea$3.40
ViewFSX3918-32 X 3/8 SS PHP SCREWea$1.18
ViewFWX1618-8 FLAT WASHER #10ea$2.00
ViewFWX7WSH FLAT .172X.375X.031 #ea$2.00
ViewFWX74WSH SPLK .26X.485X.047 PSea$1.04

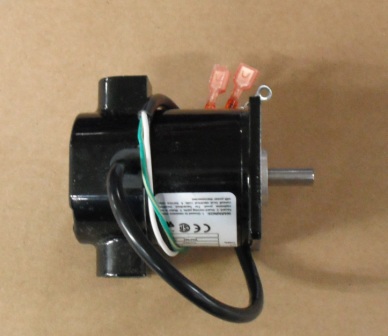

ViewMT1410X1MOTOR ASSEMBLYea$734.00
ViewSPX53GAS SPRING 20# PRESSUREea$57.90
ViewTC1412X1SENSOR, TEMPERATUREea$99.90
ViewTRX178TERM BLK 3X6 .25X.032 TABea$11.70
YAX72SHT AL3003 .125 48X96 W/Pea$1,004.00
YSX1520 CR 48X96ea$168.00
YSX92SHT SS201 48X96 20 G LPVCsht$537.00
ZSX241/2''X.020 STRAPPINGea$948.52
ViewZSX31BAG POLY 10 X 4 X 18ea$1.79
ZSX60PALLET 41 X 32 X 3.5ea$79.84
ZSX822X2X3 CORNER BOARDea$1.37





This site contains the most frequently requested Thermo Scientific Laboratory Equipment replacement parts, including those for a number of discontinued products. If you don't find the part you need, please call us at 1.866.984.3766.
If this order is for an out of service unit, please call Service Support at 1-800-438-4851 to place your order.
