Thermo Scientific LabLine/MaxQ Brand Shakers

SHKA4000-8CE

Home > Lab Equipment Parts > Shakers > Thermo Scientific LabLine/MaxQ > SHKA4000-8CE

Parts for SHKA4000-8CE

Place an Order

If this order is for an out of service unit, please call Service Support at 800-438-4851 to place your order.

ImageSKUDescriptionPackagingQtyPrice
View019-445-00SHAKER MECHANISM ASSY 11Xea$1,560.00
019-615-01REFRIGERATION ASSY-Q4000,ea$3,054.00
019-647-00BACK PLATE WLDTea$120.00
View019-652-00SEALER BOX WLDTea$140.00
0913714 CR 48X96sht$499.00
View10221SCREW MA .375-16X1.25 SSea$0.60
View10260WSH FLAT .265X.5X.065 SSea$4.90
View10266WSH FLAT .406X.734X.063 Sea$4.80
View1027610 SS SPRING LOCK WASHERea$7.30
View10277WSH SPLK .255X.493X.062 Sea$6.60
View10506BINUT ACORN 8-32 SSea$6.60
View140-236-00BALLBEARINGea$77.90
View140-290-00ANGULAR CONTACT BALL BEARea$60.70
View150-287-00DRIVER PULLEY P/Zea$69.70
View150-318-00DRIVE BELTea$8.10
View160-180-00WIRE FAN GUARD 4"ea$5.00
View160-198-00FAN GUARD 6"ea$15.00
165-515-01CTN 37X27.5X23.5 TUBE Kea$24.00
165-515-05CTN 37X27.5X4 CAP Kea$10.15
View170-832-00BALL STUD MOUNTING BRKT Nea$5.00
View172-398-00MOTOR BRACKETea$15.60
View172-455-00COVER SWITCH ACTUATORea$3.00
View228-612-00TACH PCB W/27KOHM 1/2W REea$37.60
View229-419-00ANALOG SPEED CONTROL-240Vea$338.00
View267033CABLE TIE 15.50 REUSABLEea$4.30
View270-135-00TIMER SPST 60 MINUTE WITHea$66.40
View2-E692410-32 X 1/2 SS PHP SCREWea$5.20
View330-237-00FSHLDR CNTCT CASE LOW PROea$20.80
View330-397-00DISC THERMOSTAT, 200 DEGea$55.70
View330-399-00CIRCUIT BREAKER 0.8AMPSea$48.30
View330-401-00FUSE, 100MA 250V,TIME-LAGea$10.00
View340-398-01HEATER, 1000W, 240Vea$78.70
View350-016-00SILICONE INSULAT'G SLEEVEft$5.20
View350-069-00CERAMIC BUSHINGea$16.40
View370-332-00ETRI MOTOR/BLOWER 220V 50ea$476.00
View370-388-00MOTOR DC PERMANENT MAGNETea$593.00
View370-396-006" 230V AXIAL FANea$126.00
View400-221-00RELAY (11 PIN) 240Vea$293.00
View400-233-00RELAY SOLID STATE 25A280Vea$97.70
View410-632-00IMMERSIBLE RTD TEMP SENSOea$125.00
View420-186-00RELAY SOCKETea$94.80
View420-248-00PWR INLET,FLANGE MOUNTea$10.00
View440-080-00SWITCH SPST N.O. PB, 15AMea$49.30
View440-396-00POWER SWITCH-ROUNDea$9.70
View440-397-00MINI ROCKER SWITCHea$12.90
View470-305-00CORDSET,EUROPEAN W/IEC COea$94.80
View500-640-00BASIC EXTERNAL RETAININGea$1.90
View541-102-08SCREW 10-32 X 1/2 HEX HEAea$1.90
View544-082-03SCREW 8-32X3/16 HX CP SETea$2.00
View560-275-00KNOB, LOW PROFILE 1.5 DIAea$10.00
View560-278-00COVER HANDLEea$53.00
View562-184-10THUMBSCREW,KNURLHEAD 10-3ea$7.50
View564-266-00WASHER, FLAT 1/4-20 X 11/ea$2.29
View564-397-00FLAT WASHERea$3.50
View570-368-00COVER HINGEea$41.50
View590-466-00INSULATOR, EVAPORATOR BACea$13.10
View590-474-00INSULATION PANEL, CHAMBERea$56.40
View590-474-01INSULATION PANEL,CHAMBERea$59.76
View590-477-00FRONT SEALER STRIP 22.09Xea$21.70
View590-486-00SHAKER BOX INSULATORea$23.10
View590-503-00TAPE FOAM BLK .125X.625X8ft$7.90
View600-125-00KNOB LOCKING TAB 5/8X1-5/ea$4.14
View615-432-00COVER STIFFENERea$86.70
View660-111-00TACHOMETER 0-500RPM ROUNDea$248.00

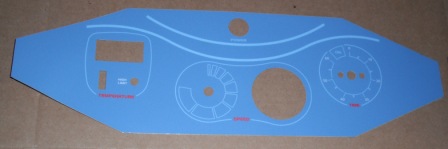

View682-673-00TIME/SPEED/TEMP OVERLAY Aea$70.06
View720-574-00SHAKER NOSEPIECE 18 X 18ea$130.00
View720-588-00ACRYLIC COVER-Q4000 SERIEea$758.00
View720-591-00HAND VALVE CAPea$12.00
790-316-13PLATFORM MAT 17-1/4SQea$47.00
View790-423-00RUBBER FOOTea$6.80
View796-998-00DRYERea$15.53
View797-567-00AUTO EXP. VALVE ANGLE TYPea$207.00
797-700-00COMPRESSOR 1/3HP 220/240-ea$896.00
View800-101-00UPPER BALL STUDea$9.60
View803-630-00UPPER BEARING HOUSINGea$66.60
View803-632-00DRIVER CRANKea$165.00
View803-633-00IDLER CRANKea$115.00
View805-932-00PLATFORM HOLDER PANea$284.00
View805-952-00COVER BOTTOM PANELea$91.20
View805-982-00SEALER PLATEea$52.70
View850-117-00GAS SPRING 10# PRESSUREea$70.00
View920-098-01THERMOSTAT -22DEGF TO 167ea$140.00
View920-395-00LOW PRESSURE CONTROL SWITea$96.00
View920-396-00HIGH PRESSURE CONTROL SWIea$96.00
ViewADX15LOCKTITE THREADLOCK 222MSea$164.00
ViewADX7ADHESIVE LOCTITE GREENea$296.00

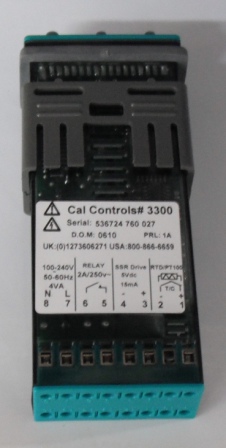

ViewCN71X131PCONTROL CONFIGURED 3300ea$438.00
ViewCNX177THERMOSTATea$316.00
ViewCRX125CORD 1MM-2 BRIT 240 10A Pea$38.10
ViewDLX150ELECT SHOCK WARNING 1/2"Dea$1.14
ViewFCX45RETAINING RING INT 1.526ea$3.50
ViewFNX1016-32 ZP LK/WASH HEX NUTea$2.60
ViewFNX117NUT KEPS 8-32 SSea$23.80
ViewFNX55NUT PEM 8-32 SS MIN .056ea$2.00
ViewFSX128SCREW ST .25-20X.25 BO IHea$2.07
ViewFSX2146-32 X 1/4 SS PHP SCREWea$3.40
ViewFSX2458-32 X 1-3/4 SS PHP SCREWea$2.20
ViewFSX3918-32 X 3/8 SS PHP SCREWea$1.18
ViewFSX548-32X1/2 SS PHP SCREW Fea$3.70
ViewFWX1618-8 FLAT WASHER #10ea$2.00
ViewFWX7WSH FLAT .172X.375X.031 #ea$2.00
ViewFWX74WSH SPLK .26X.485X.047 PSea$1.04
ViewGSX18GASKET EDGE .062 "U" CHANft$11.60
LT1412X11LIT CHECKLISTea$0.48
ViewMT1410X2MOTOR ASSEMBLYea$479.00
ViewPMX298VALVE, ACCESS EXT CU 5/16"O.D.ea$24.90
ViewRY1412X2RELAY ASSY 3/8" SOLENOIDea$72.00
ViewSLX11SLV #12 .081 220C R-FIBft$7.00
ViewSLX14SLV .5 220C R-FIBft$37.10
ViewSW1412X2SWITCH ASSY HI PSI CONTROea$112.00
ViewTC1412X1SENSOR, TEMPERATUREea$99.90
ViewTN1412X2TRANSFORMER ASSEMBLYea$162.00
ViewTRX178TERM BLK 3X6 .25X.032 TABea$11.70
YAX72SHT AL3003 .125 48X96 W/Pea$1,004.00
YSX1520 CR 48X96ea$168.00
YSX92SHT SS201 48X96 20 G LPVCsht$537.00
ZSX241/2''X.020 STRAPPINGea$948.52
ViewZSX31BAG POLY 10 X 4 X 18ea$1.79
ZSX60PALLET 41 X 32 X 3.5ea$79.84
ZSX822X2X3 CORNER BOARDea$1.37





This site contains the most frequently requested Thermo Scientific Laboratory Equipment replacement parts, including those for a number of discontinued products. If you don't find the part you need, please call us at 1.866.984.3766.
If this order is for an out of service unit, please call Service Support at 1-800-438-4851 to place your order.
