Thermo Scientific LabLine/MaxQ Brand Shakers

SHKE4000-8CE

Home > Lab Equipment Parts > Shakers > Thermo Scientific LabLine/MaxQ > SHKE4000-8CE

Parts for SHKE4000-8CE

Place an Order

If this order is for an out of service unit, please call Service Support at 800-438-4851 to place your order.

ImageSKUDescriptionPackagingQtyPrice
View019-445-00SHAKER MECHANISM ASSY 11Xea$1,560.00
View019-533-00PCB ASSY E-LINEea$611.00
View019-533-06PCB MICRO PROGea$1,260.00
View019-534-00PCB ASSY PWR/SPEED BOARDea$661.00
View019-536-00PCB PWR/SPEED W/TEMPea$168.00
View019-550-00PCB ASSY HEATER BOARDea$250.00
View019-565-00CONTROL PANEL WLDTea$90.30
019-615-01REFRIGERATION ASSY-Q4000,ea$3,054.00
019-647-00BACK PLATE WLDTea$120.00
View019-652-00SEALER BOX WLDTea$140.00
0913714 CR 48X96sht$499.00
View10221SCREW MA .375-16X1.25 SSea$0.60
View10260WSH FLAT .265X.5X.065 SSea$4.90
View10266WSH FLAT .406X.734X.063 Sea$4.80
View1027610 SS SPRING LOCK WASHERea$7.30
View10277WSH SPLK .255X.493X.062 Sea$6.60
View10506BINUT ACORN 8-32 SSea$6.60
View140-236-00BALLBEARINGea$77.90
View140-290-00ANGULAR CONTACT BALL BEARea$60.70
View150-288-00DRIVE BELT 3/16"DIAX22-3/ea$11.70
View150-297-00DRIVER PULLEY P/Zea$77.10
View160-180-00WIRE FAN GUARD 4"ea$5.00
View160-198-00FAN GUARD 6"ea$15.00
165-515-01CTN 37X27.5X23.5 TUBE Kea$24.00
165-515-05CTN 37X27.5X4 CAP Kea$10.15
View170-832-00BALL STUD MOUNTING BRKT Nea$5.00
View172-398-00MOTOR BRACKETea$15.60
View172-455-00COVER SWITCH ACTUATORea$3.00
View267033CABLE TIE 15.50 REUSABLEea$4.30
View2-E692410-32 X 1/2 SS PHP SCREWea$5.20
View330-237-00FSHLDR CNTCT CASE LOW PROea$20.80
View330-382-00LINE FILTER 10A 110-250VAea$129.00
View330-397-00DISC THERMOSTAT, 200 DEGea$55.70
View330-401-00FUSE, 100MA 250V,TIME-LAGea$10.00
View340-398-01HEATER, 1000W, 240Vea$78.70
View350-016-00SILICONE INSULAT'G SLEEVEft$5.20

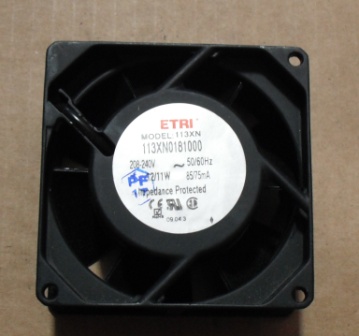

View370-332-00ETRI MOTOR/BLOWER 220V 50ea$476.00
View370-390-00MOTOR BRUSHLESS DCea$1,010.00
View370-396-006" 230V AXIAL FANea$126.00
View400-221-00RELAY (11 PIN) 240Vea$293.00
View410-632-00IMMERSIBLE RTD TEMP SENSOea$125.00
View420-186-00RELAY SOCKETea$94.80
View420-248-00PWR INLET,FLANGE MOUNTea$10.00
View420-265-01D-SUB DUST COVERea$5.00
View420-359-003-POLE CIRCULAR MALE CONNea$5.29
View440-080-00SWITCH SPST N.O. PB, 15AMea$49.30
View440-396-00POWER SWITCH-ROUNDea$9.70
View460-315-00100W 48VDC 1 OUTPUT PWR Sea$814.00
View470-305-00CORDSET,EUROPEAN W/IEC COea$94.80
View470-337-00RIBBON CABLEea$27.00
View470-341-00HEATER CONTROL HARNESSea$19.83
View500-640-00BASIC EXTERNAL RETAININGea$1.90
View541-102-08SCREW 10-32 X 1/2 HEX HEAea$1.90
View544-082-03SCREW 8-32X3/16 HX CP SETea$2.00
View560-278-00COVER HANDLEea$53.00
View562-184-10THUMBSCREW,KNURLHEAD 10-3ea$7.50
View564-266-00WASHER, FLAT 1/4-20 X 11/ea$2.29
View564-397-00FLAT WASHERea$3.50
View570-368-00COVER HINGEea$41.50
View590-466-00INSULATOR, EVAPORATOR BACea$13.10
View590-474-00INSULATION PANEL, CHAMBERea$56.40
View590-474-01INSULATION PANEL,CHAMBERea$59.76
View590-477-00FRONT SEALER STRIP 22.09Xea$21.70
View590-486-00SHAKER BOX INSULATORea$23.10
View590-503-00TAPE FOAM BLK .125X.625X8ft$7.90
View615-432-00COVER STIFFENERea$86.70
View720-574-00SHAKER NOSEPIECE 18 X 18ea$130.00
View720-588-00ACRYLIC COVER-Q4000 SERIEea$758.00
View720-591-00HAND VALVE CAPea$12.00
790-316-13PLATFORM MAT 17-1/4SQea$47.00
View790-423-00RUBBER FOOTea$6.80
View796-998-00DRYERea$15.53
View797-567-00AUTO EXP. VALVE ANGLE TYPea$207.00
797-700-00COMPRESSOR 1/3HP 220/240-ea$896.00
View800-101-00UPPER BALL STUDea$9.60
View803-630-00UPPER BEARING HOUSINGea$66.60
View803-632-00DRIVER CRANKea$165.00
View803-633-00IDLER CRANKea$115.00
View805-932-00PLATFORM HOLDER PANea$284.00
View805-952-00COVER BOTTOM PANELea$91.20
View805-982-00SEALER PLATEea$52.70
View830-461-00SUPPORT POSTea$4.40
View850-117-00GAS SPRING 10# PRESSUREea$70.00
View920-098-01THERMOSTAT -22DEGF TO 167ea$140.00
View920-395-00LOW PRESSURE CONTROL SWITea$96.00
View920-396-00HIGH PRESSURE CONTROL SWIea$96.00
ViewADX15LOCKTITE THREADLOCK 222MSea$164.00
ViewADX7ADHESIVE LOCTITE GREENea$296.00
ViewCA1412X1CAPACITOR ASSEMBLYea$18.00
ViewCNX177THERMOSTATea$316.00
ViewCRX125CORD 1MM-2 BRIT 240 10A Pea$38.10
ViewDLX150ELECT SHOCK WARNING 1/2"Dea$1.14
ViewFCX45RETAINING RING INT 1.526ea$3.50
ViewFNX1016-32 ZP LK/WASH HEX NUTea$2.60
ViewFNX117NUT KEPS 8-32 SSea$23.80
ViewFNX55NUT PEM 8-32 SS MIN .056ea$2.00
ViewFNX976-32 KEPSNUT SM STL ZC/.2ea$3.50
ViewFSX128SCREW ST .25-20X.25 BO IHea$2.07
ViewFSX2146-32 X 1/4 SS PHP SCREWea$3.40
ViewFSX2458-32 X 1-3/4 SS PHP SCREWea$2.20
ViewFSX3918-32 X 3/8 SS PHP SCREWea$1.18
ViewFSX46SCREW MA 6-32X.25 PS P PHea$3.40
ViewFSX548-32X1/2 SS PHP SCREW Fea$3.70
ViewFW374X1SPACER RD .166X.375X.375ea$2.00
ViewFWX1618-8 FLAT WASHER #10ea$2.00
ViewFWX7WSH FLAT .172X.375X.031 #ea$2.00
ViewFWX74WSH SPLK .26X.485X.047 PSea$1.04
ViewGSX18GASKET EDGE .062 "U" CHANft$11.60
LT1412X11LIT CHECKLISTea$0.48
ViewPMX298VALVE, ACCESS EXT CU 5/16"O.D.ea$24.90

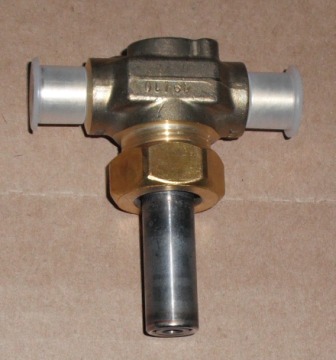

ViewRY1412X2RELAY ASSY 3/8" SOLENOIDea$72.00
ViewSLX14SLV .5 220C R-FIBft$37.10
ViewSW1410X1SWITCH VIBRATION SENSORea$54.00
ViewSW1412X2SWITCH ASSY HI PSI CONTROea$112.00
ViewSWX259SWITCH TIME/SPD/TEMP KEYBea$262.00
ViewTC1412X1SENSOR, TEMPERATUREea$99.90

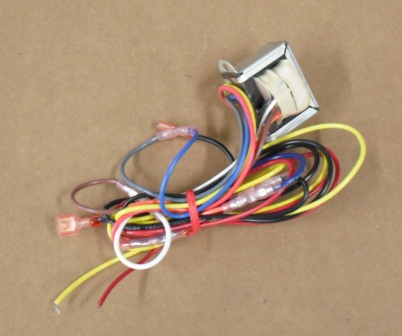

ViewTN1412X2TRANSFORMER ASSEMBLYea$162.00
ViewWHX38WIRE HARNESS 40 COND 9INea$24.70
YAX72SHT AL3003 .125 48X96 W/Pea$1,004.00
YSX1520 CR 48X96ea$168.00
YSX92SHT SS201 48X96 20 G LPVCsht$537.00
ZSX241/2''X.020 STRAPPINGea$948.52
ViewZSX31BAG POLY 10 X 4 X 18ea$1.79
ZSX60PALLET 41 X 32 X 3.5ea$79.84
ZSX822X2X3 CORNER BOARDea$1.37





This site contains the most frequently requested Thermo Scientific Laboratory Equipment replacement parts, including those for a number of discontinued products. If you don't find the part you need, please call us at 1.866.984.3766.
If this order is for an out of service unit, please call Service Support at 1-800-438-4851 to place your order.
